Solar Collectors, Measures 2,050 x 1050 x 95mm, Dry Weighs 38kg, Liquid Volume of 0.46kg

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

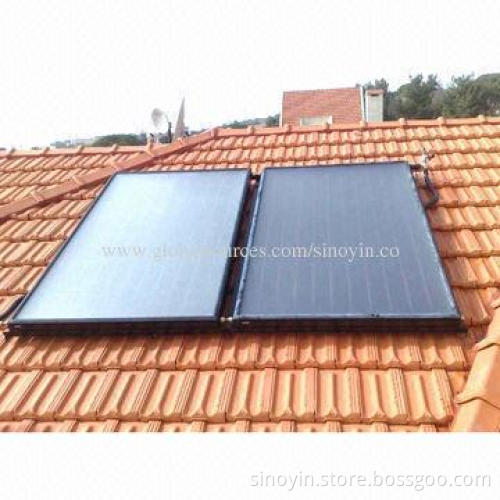

Type of flat plate solar collector flat plate collector for on-roof, flat-roof and facade mounting

Dimensions: 2,050 x 1,050 x 95mm

Gross area: 2.15m²

Absorber area: 2.05m²

Aperture area: 1.98m²

Dry weight: 38kg

Liquid volume: 0.46kg

Nominal flow rate: 21GPH (0.35gpm)

Nominal pressure loss: 160mbar (water, propylene-glycol, 68F)

Collector connections: 2 connectors at top, 12mm for compression fittings

Absorber type: 12mm/serpentine, laser-welded to aluminum absorber plate

Absorber coating: highly selective on aluminum

Absorption/emission: 95/5%

Covering: low iron, clear and solar safety glass (ESG)

Transmission of covering: 88%

Cover impact resistance passed optional impact resistance tests following EN12975-2

Insulation fiber glass/1.2-inch

Collector frame material: powder coated aluminum

Heat loss coefficient: a1 (k1) 3.95W/(m²K)

Heat loss coefficient: a2 (k2) 0.0165W/(m²K)

Maximum stagnation temperatures: 375.8°F (191°C)

Maximum operating pressure: 10 bar

Certifications: solar keymark, SRCC, CE, ISO and CCC

Advantages:

Germany imported selective blue titanium coating
Laser welding between whole absorber panel and copper tube, high strength thicken heavy duty aluminum frame
Special low-iron tempered glass with transmittance more than 92%
Mechanical load, freeze resistance, rain penetration, exposure, hail impact

Germany imported selective blue titanium coating

Laser welding between whole absorber panel and copper tube, high strength thicken heavy duty aluminum frame

Special low-iron tempered glass with transmittance more than 92%

Mechanical load, freeze resistance, rain penetration, exposure, hail impact
