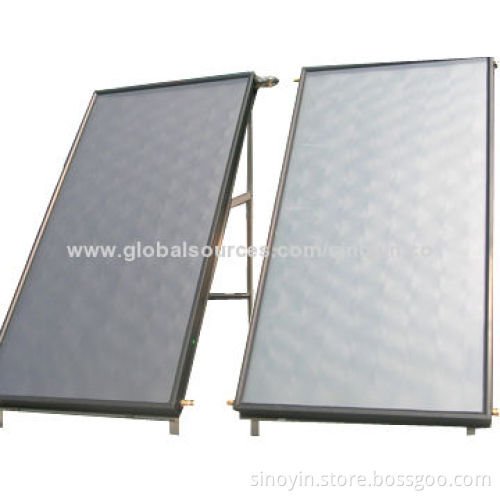

Flat Plate Solar Collector with 6063-T5 Frame, Low Iron Tempered Glass for Cover, EPDM for Sealing

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Dimensions: (L) 2,050 x (W) 1,050 x (H) 80mm

Pipe type: grid

Plate core copper tube material: header pipe: 0.8 mm exhaust

Gross area: 2.15m²

Lighting area: 1.97m²

Net weight: 37kg

Medium volume: 1.3L

Pipe line way: vertical

Interface: ¦22 copper pipe

Absorber: blue titanium (Germany)

Absorptivity: >95%

Emissivity: <5%

Base plate: aluminum plate, 0.5mm

Thermal insulation layer material beyond white tempered glass: 3.2

Light transmittance: 91.5%

Thermal efficiency: 0.77

K 50°: 0.95

Heat transfer medium: ethylene glycol solution

Test pressure: 1.2MPa

working pressure: 0.6MPa

Suggest flow : 70 to 80L/hm²

number of series: <8
