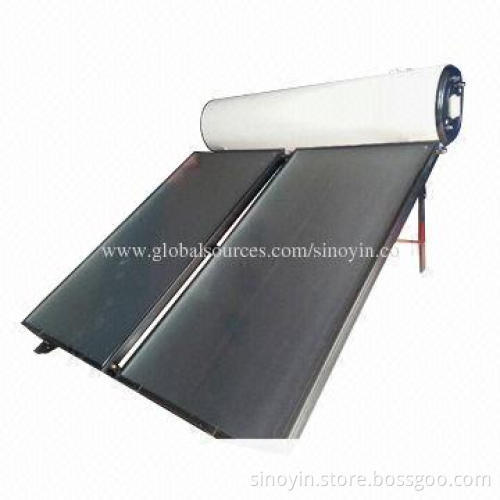

SRCC-/EN12975-/CE-/CCC-approved Solar Water Heater Collector and Solar Collectors

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Dimensions: (L) 2050 x (W) 1050 x (H) 80mm

Gross area: 2.15m²

Aperture area: 1.93m²

Absorber area: 2.05m²

Cover material: low iron and 3.2mm ultra white tempered glass

Cover transmission: 90%

Weight: 37kg

Absorber: aluminum

Surface treatment: sputtering (imported blue titanium coating from Germany)

Absorptivity: 95 ± 2%

Emissivity: 5 ± 2%

Header material: copper TP2 and CA1220

Header tuber size: 22 x 0.6mm and G1/2 inches

Riser material: copper TP2 and CA1220

Riser tuber size: 8 x 0.6mm

Working pressure: 0.75MPa

Test pressure: 1.2MPa and keep up to five minutes

Maximum power (G is equal 1000W/m² per collector): 1.25kW

Heat loss coefficient a1: 4.574W/m²K

Heat loss coefficient a2: 0.03W/m²K

Maximum stagnation temperature for ambient conditions (1000W/m² and 30°C): 160°C

Insulation material and thickness: 35 ± 5mm fiberglass

Frame: aluminum alloy

Back plate: galvanized steel

Loading quantity:

Packing: full carton box into wooden case for LCL and carton box for FCL

20ft container: 129 pieces

40ft container: 266 pieces

40ft HQ container: 296 pieces
