Split Pressure Solar Water Heater with Flat Panel Solar Collector

Split Pressure Solar Water Heater with Flat Panel Solar Collector

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

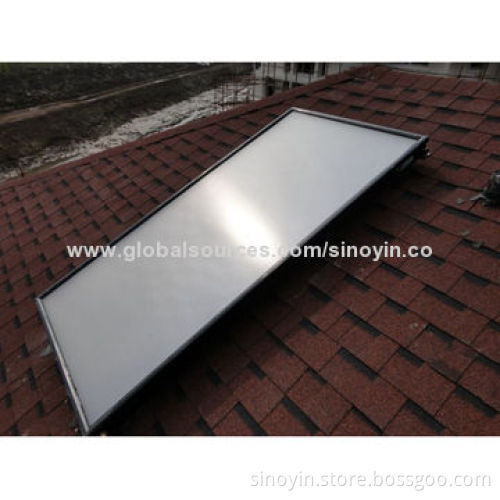

Can use for any purpose, flat plate solar collector is installed on balcony or roof, water tank is installed outer or inner house

There is deicing fluid circulated in solar collector and water tank, deicing fluid is heated by sunshine than transfer temperature to water by heat exchanger inner water tank

Makes full use of sunshine and electric auxiliary heating on water tank, the following is details of system working principle:

When the temperature difference between solar collector and tank reaches the set value, the controller will start the circulation pump automatically, contrarily, In case the when the temperature difference between solar collector and tank do reaches the set value, the circulation pump will be shut automatically
Circulation pump makes heat-conducting liquid circulate automatically
Heat-conducting liquid transfers heat to water by heat exchanger in the water tank
Water tank with electrical auxiliary heating system, when the temperature of the water tank does not reach Tmax, electrical heating system will start to work

Passed the certifications of Solar key-mark, SRCC, CE, ISO9001-2000, CCC and more, their quality is guaranteed

FOB port: Shanghai port

Delivery lead time: 10 to 28 days

Advantages:

Germany imported selective blue titanium coating
Laser welding between whole absorber panel and copper tube, high strength thicken heavy duty aluminum frame
Special low-iron tempered glass with transmittance more than 92%
Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock tested and more
Long lifespan, large absorber area, good warm keeping, European, North America special designed

When the temperature difference between solar collector and tank reaches the set value, the controller will start the circulation pump automatically, contrarily, In case the when the temperature difference between solar collector and tank do reaches the set value, the circulation pump will be shut automatically

Circulation pump makes heat-conducting liquid circulate automatically

Heat-conducting liquid transfers heat to water by heat exchanger in the water tank

Water tank with electrical auxiliary heating system, when the temperature of the water tank does not reach Tmax, electrical heating system will start to work

Germany imported selective blue titanium coating

Laser welding between whole absorber panel and copper tube, high strength thicken heavy duty aluminum frame

Special low-iron tempered glass with transmittance more than 92%

Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock tested and more

Long lifespan, large absorber area, good warm keeping, European, North America special designed
