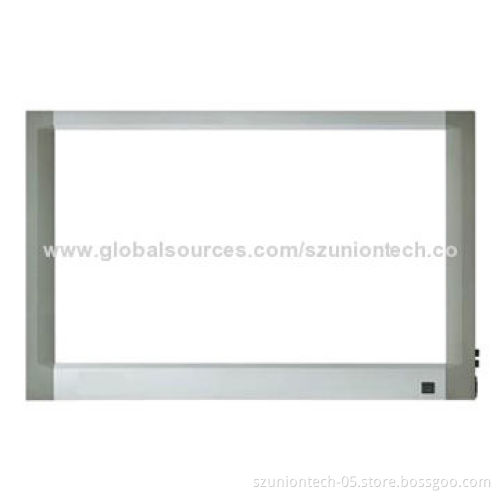

Ultra-thin high brightness X-ray film illuminator

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or Western Union

Product Description

Specifications:

Features:

With the function of automatic switching-on upon film-inserting
With the function of delayed switching-off after a film is removed
Install method: wall-mounted and bracket type (the bracket is an optional component)

External dimensions: 850*545*20mm

Film-viewing area: 740*440mm

Backlight source type: LED

Color temperature: 9300K

Service life: 100,000 hours

Average brightness: 300cd/m and 2-4000 cd/m2

Average illuminance: 6300lux

Brightness uniformity coefficient of viewing screen: ≥90%

Appropriate films:

Ordinary analog x-ray film

High-density digital x-ray film

Mammography medical film

Power supply: voltage self-adaption and built-in power supply

Voltage: 90-240V AC

Power: 100W ±10%

Frequency: 50/60Hz

Operating conditions: ambient luminance in the room shall not exceed 100lux

With the function of automatic switching-on upon film-inserting

With the function of delayed switching-off after a film is removed

Install method: wall-mounted and bracket type (the bracket is an optional component)
