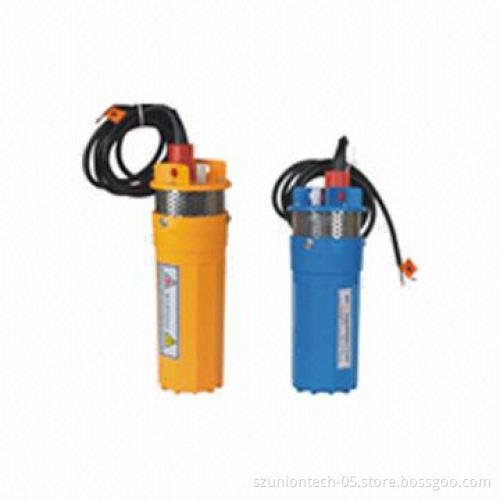

24V DC Submersible Potable Water Well Pump, Maximum Lift of 230ft, Maximum Submersion of 100ft
  • 24V DC Submersible Potable Water Well Pump, Maximum Lift of 230ft, Maximum Submersion of 100ft
24V DC Submersible Potable Water Well Pump, Maximum Lift of 230ft, Maximum Submersion of 100ft

24V DC Submersible Potable Water Well Pump, Maximum Lift of 230ft, Maximum Submersion of 100ft

Get Latest Price
Payment Type:
T/T, L/C, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union
Product Description
Product Description
  • Description:
    • Solution for remote water pumping needs
    • Rugged, durable and built to last
    • Delivers steady 162gph (600lph) at its maximum depth of 230ft(70m) when supplied with 24V DC
    • Unique water-tight power connector stops water wicking andprevents potential condensation problems
    • Great for livestock watering, irrigation, pond aeration, remotehomes and cabins
  • Features:
    • Long lifespan 24V DC operation
    • For 4-inch wells or larger
    • Quick disconnect with watertight gland design
    • Corrosion-proof housing with stainless-steel fasteners
    • Runs dry without damage
    • 50 mesh stainless steel inlet screen
    • State of art solid diaphragm
  • Specifications:
    • Pump design: positive displacement 3 chambers
    • Diaphragm pump
    • Motor: permanent magnet, thermally protected
    • Voltage: 24V DC nominal
    • AMPS: 4.0 maximum
    • Internal bypass: 105 to 110psi maximum (7.2 to 7.5 bar)
    • Maximum lift: 230ft maximum (70m)
    • Maximum submersion: 100ft maximum (30m)
    • Outlet port: 1/2-inch (12.7mm) barbed fitting
    • Inlet: 50 mesh stainless steel screen
    • Materials: high-strength engineered plastics
    • Stainless steel fasteners
    • Typical applications: potable water well pump
    • Current: 1.6, 4.0A maximum
  • Solution for remote water pumping needs
  • Rugged, durable and built to last
  • Delivers steady 162gph (600lph) at its maximum depth of 230ft(70m) when supplied with 24V DC
  • Unique water-tight power connector stops water wicking andprevents potential condensation problems
  • Great for livestock watering, irrigation, pond aeration, remotehomes and cabins
  • Long lifespan 24V DC operation
  • For 4-inch wells or larger
  • Quick disconnect with watertight gland design
  • Corrosion-proof housing with stainless-steel fasteners
  • Runs dry without damage
  • 50 mesh stainless steel inlet screen
  • State of art solid diaphragm
  • Pump design: positive displacement 3 chambers
  • Diaphragm pump
  • Motor: permanent magnet, thermally protected
  • Voltage: 24V DC nominal
  • AMPS: 4.0 maximum
  • Internal bypass: 105 to 110psi maximum (7.2 to 7.5 bar)
  • Maximum lift: 230ft maximum (70m)
  • Maximum submersion: 100ft maximum (30m)
  • Outlet port: 1/2-inch (12.7mm) barbed fitting
  • Inlet: 50 mesh stainless steel screen
  • Materials: high-strength engineered plastics
  • Stainless steel fasteners
  • Typical applications: potable water well pump
  • Current: 1.6, 4.0A maximum
