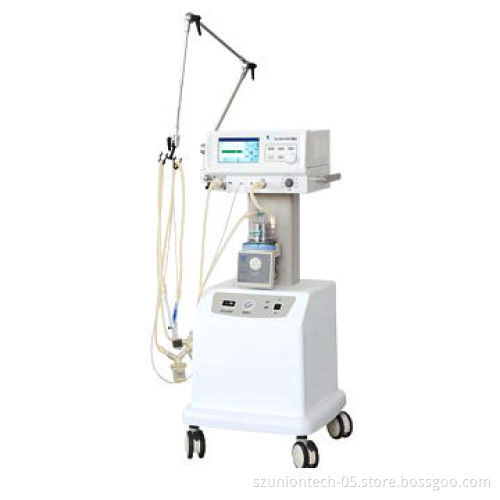

CPAP System Ventilator, Environment-friendly, Continuous Operating

Get Latest Price

Payment Type:: T/T, L/C or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or Western Union

Product Description

Main technical specification:

Environment-friendly

Working environment:

Ambient temperature: 5 to 40°C
Relative humidity: ≤80 %
Atmospheric pressure: 960 to 1040hPa

Storage and transportation environment:

Ambient temperature: -10 to +40°C
Relative humidity: ≤90 %
Atmospheric pressure: 860 to 1060hPa

Ambient temperature: 5 to 40°C

Relative humidity: ≤80 %

Atmospheric pressure: 960 to 1040hPa

Ambient temperature: -10 to +40°C

Relative humidity: ≤90 %

Atmospheric pressure: 860 to 1060hPa

Classification:

According to IEC 60601-1, this machine belongs to:

Class I, internally powered equipment

Type B applied part

Normal equipment

Continuous operating

Sterilization (refer to chapter 9 of clearance andsterilization)

Gas supply:

Gas source O2 (for medical use)

Air (for medical use)

Rated working pressure: 350kPa

Output pressure of regulator: 350 ±50kPa (300 to400kPa)

Power supply:

Voltage: 220 to ±22V

Frequency: 50 ±1Hz

Input power: 900VA

Main unit: 25W

Air compressor: 675W

Internal power: 12V DC, 4Ah

Fuse:

AC power for main unit: 5T T1AL 250V
Battery: 5T T2AL 250V
AC power for air compressor: 5T T6.3AL 250V
AC power for machine: 5T T10AL 250V

AC power for main unit: 5T T1AL 250V

Battery: 5T T2AL 250V

AC power for air compressor: 5T T6.3AL 250V

AC power for machine: 5T T10AL 250V

Electromagnetic compatibility:

Cell phone and other radiation equipment used near the machinewill cause unexpected problem to ventilator

Other equipment added to ventilator will lead to disturbance tomachine

Before used to the patient, check if the machine works normallyunder the set values

Parameter adjustment:

FiO2

Adjusting range: 21 to 100 %

Accuracy: ±15 %

CPAP adjusting range: 0 to 15cm H2O

Continuous flow adjusting range: 2 to 20L/min

Continuous flow adjusting range for manual: 20 to±5L/min
