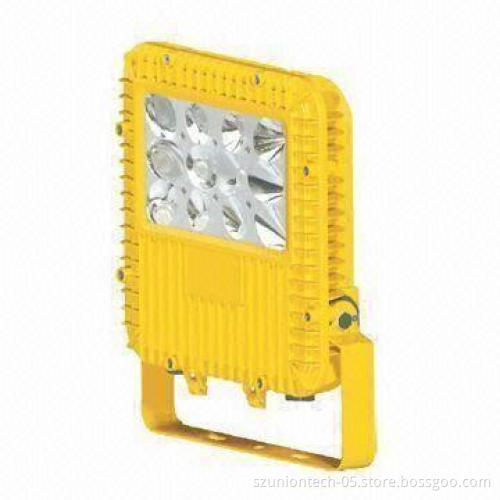

LED Explosion-proof Lamp with IP66 IP Rating and 25 to 80W Power, Ex d II B T6

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union

Product Description

Characteristics:

With its reflector which have different angles design, itefficiently utilize the light
Have a good performance of illuminance uniformity, glare free,can avoid eyestrain to the worker
It adopts American Cree LED as light source, can save 60% ormore on energy than the metal halide lamp
Housing is especially designed to dissipate heat, whichincrease the efficiency and lifespan of the LED, so that to ensurethe 100,000 hours LED lifespan
BC9101 uses Taiwan Meanwell electrical appliance which lifespanis top ranking in the world, power factor: 0.98, has a highlystable performance
Adjustable gear on the bracket can tightly fix the lamp to anydesired angle, making the lamp resist to harsh vibration
Anti-corrosion, abrasion-proof, powder-coated cover which isdust-proof, waterproof, make the lamp an excellent option for allkinds of high stress environment
Multiple mounting options including ceiling, pendent, wall andmore
Adjustable mounting bracket enable the operator to choosemounting angle within 90°
Lamp can parallel connected, no need to use the junctionbox

Specifications:

Rated voltage:
- Input voltage: 90 to 305V AC
- Output voltage: 36 to 48V DC
Ex mark: Ex d II B T6 Gb
Frequency: 47 to 63Hz
Insulation grade: I
Spacing height ratio: 4.5
Inlet thread size: G3/4 inches
Cable diameter: Ø8 to 14mm
Dimensions: 326 x 326 x 75mm
Weight: 5.5kg

With its reflector which have different angles design, itefficiently utilize the light

Have a good performance of illuminance uniformity, glare free,can avoid eyestrain to the worker

It adopts American Cree LED as light source, can save 60% ormore on energy than the metal halide lamp

Housing is especially designed to dissipate heat, whichincrease the efficiency and lifespan of the LED, so that to ensurethe 100,000 hours LED lifespan

BC9101 uses Taiwan Meanwell electrical appliance which lifespanis top ranking in the world, power factor: 0.98, has a highlystable performance

Adjustable gear on the bracket can tightly fix the lamp to anydesired angle, making the lamp resist to harsh vibration

Anti-corrosion, abrasion-proof, powder-coated cover which isdust-proof, waterproof, make the lamp an excellent option for allkinds of high stress environment

Multiple mounting options including ceiling, pendent, wall andmore

Adjustable mounting bracket enable the operator to choosemounting angle within 90°

Lamp can parallel connected, no need to use the junctionbox

Rated voltage:
