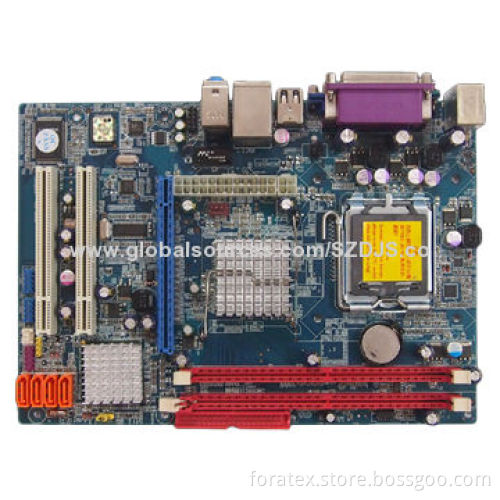

G31-775 Main Board, G31 LGA 775 DDR2, Supports Intel Core 2, Quad Core 2, Duo P4, Supports DDR2New

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or MoneyGram

Product Description

Specification:

CPU:
- Supports Intel Pentium HT (Hyper Threading Technology) CPU
- Supports 533/800/1,066/1,333MHz HOST BUS frequency only for G31 supports FSB 1333）
- Supports Intel Conroe-L socket775 CPU
- Supports Intel Conroe LGA775 CPU
- Supports Intel Pentium 4/D socket 775 CPU
- Supports Intel Celeron D socket 775 CPU
Chipsets:
- Intel 946GZ/G31 chipset + ICH7 (optional)
VGA:
- Intel graphics media accelerator 3000
Memory:
- Provides two 240-pin DDRII slots
- Supports DDRII 533/667/800 double channel mode (only for G31 supports DDR2 800)
Expansion slot:
- 1 PCI Express X16 slot
- 2* 32-bit PCI slots 2.2 specification compliant
LAN:
- RJ45 REALTEK RTL8100C (10/100Mbps)
Sound card:
- ALC655/653 (onboard AC’97 2.3 specification compliant)
IDE:
- Provides 1 channel connecting for IDE drives
- Supports ultra ATA66/100/133 synchronous DMA modes
SATA
- 4* SATA2 ports
I/O ports:
- One serial port
- One parallel port, supports EPP/ECP/SPP transfers
- 2 USB ports
- One PS/2 keyboard port
- One PS/2 mouse port
- 1 VGA port
- 1 multiple stereos (mic in, line in, line out jack)
- 1 RJ45 port
Onboard ports:
- 24-pin ATX power port
- 4-pin ATX 12V power port
- 1 CD-IN port
- 2 USB 2.0 ports
- 1 CPU fan connector
- 1F audio port
BIOS: 8M flash ROM
Size: micro ATX form factor, 241*168mm

CPU:

Supports Intel Pentium HT (Hyper Threading Technology) CPU
Supports 533/800/1,066/1,333MHz HOST BUS frequency only for G31 supports FSB 1333）
Supports Intel Conroe-L socket775 CPU
Supports Intel Conroe LGA775 CPU
Supports Intel Pentium 4/D socket 775 CPU
Supports Intel Celeron D socket 775 CPU

Chipsets:
