10-pair profile high band moduleNew

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

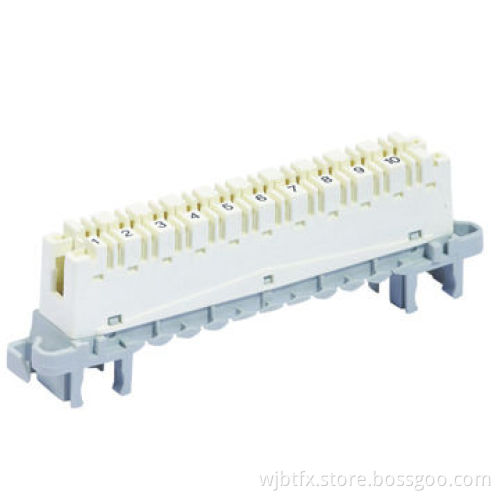

STG module (Pouyet type)

A: 8 pairs disconnection module

B: 10 pairs disconnection module

C: 16 pairs disconnection module

Packaging & delivery:

396pcs/box, size: 59 x 36 x 60cm
Delivery: 15 days

Specifications:

STG disconnection module
Light blue body and light grey base or color as customers
More than cat 5 transmission standard
Reliability and performance
Straight IDC technology offers outstanding performance
Multiple termination with all kind of conductor gauges in the 0.4mm to 0.8mm range
Improved wire retention (in all directions)
Gas-tight connection area-corrosion proof
Tin-lead plating on contacts avoids corrosion
Transmission performances meet cat 5 (100MHz)
2 wires can be accommodated in the same slot
Very compact connection module (14mm pitch)
Specific contacts for stranded wires upon request
Dimension: 126 x 14 x 50mm (8 pairs)
Package: 11pcs/box 396pcs/box

Application in the network

Suitable for high density installation (2,400 pair single sided cross connection cabinets, 1,600 pairs on 2.6 meters vertical MDF, containerized exchanges)
STG modules are suitable for public telephony (MDF. Cross connection cabinets, building distribution) as well as for private telephony and high data rates transmission.
Module can be used in any modern network and fully compatible with all kind of applications (XDSL. Pairgain)

396pcs/box, size: 59 x 36 x 60cm

Delivery: 15 days

STG disconnection module

Light blue body and light grey base or color as customers

More than cat 5 transmission standard

Reliability and performance

Straight IDC technology offers outstanding performance

Multiple termination with all kind of conductor gauges in the 0.4mm to 0.8mm range

Improved wire retention (in all directions)

Gas-tight connection area-corrosion proof

Tin-lead plating on contacts avoids corrosion

Transmission performances meet cat 5 (100MHz)

2 wires can be accommodated in the same slot

Very compact connection module (14mm pitch)

Specific contacts for stranded wires upon request

Dimension: 126 x 14 x 50mm (8 pairs)

Package: 11pcs/box 396pcs/box

Suitable for high density installation (2,400 pair single sided cross connection cabinets, 1,600 pairs on 2.6 meters vertical MDF, containerized exchanges)

STG modules are suitable for public telephony (MDF. Cross connection cabinets, building distribution) as well as for private telephony and high data rates transmission.

Module can be used in any modern network and fully compatible with all kind of applications (XDSL. Pairgain)
