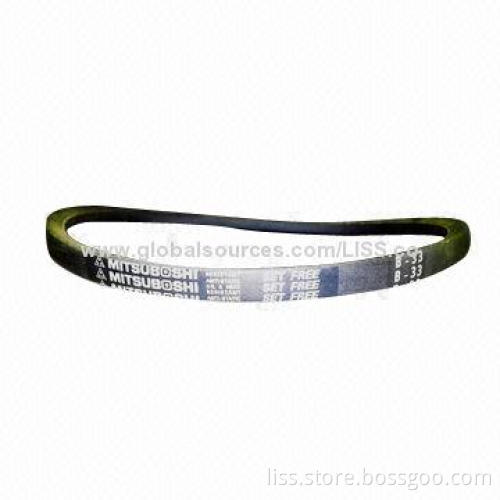

Wedge V Belts, Rubber

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications: high performance, raw edge, molded cogged V belt/increase performance of up to 15%/extremely low stretch/optimized running characteristics/excellent oil and heat resistance/can be used in set without further measurement

We offer models: A/B/C/D/O/SPZ/3V/SPM/SPB/5V/SPC (with/thickness below)

A: 13/8
B: 17/11
C: 22/14
D: 32/19
O: 10/6
SPZ/3V: 10/8
SPM: 12.7/10
SPB/5V: 16.3/13
SPC: 22/18

Application: generators, water pumps, fans, lathes and drilling machines, grinding machines

How to calculate V belts:

To determine of the belt width and thickness, and then determine the inner perimeter: the easiest way is to use a string around
Trench path around the belt pulley of a circle that measure the length, the length is the metric model of inner perimeter type belt

A: 13/8

B: 17/11

C: 22/14

D: 32/19

O: 10/6

SPZ/3V: 10/8

SPM: 12.7/10

SPB/5V: 16.3/13

SPC: 22/18

To determine of the belt width and thickness, and then determine the inner perimeter: the easiest way is to use a string around

Trench path around the belt pulley of a circle that measure the length, the length is the metric model of inner perimeter type belt
