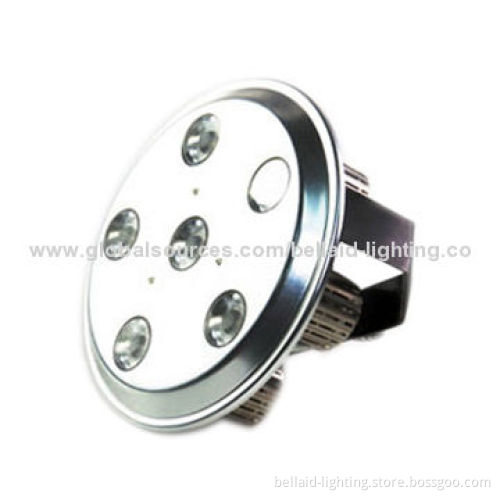

90W LED high bay light, excellent fin type heat conducting housing with quality design
  • 90W LED high bay light, excellent fin type heat conducting housing with quality design
  • 90W LED high bay light, excellent fin type heat conducting housing with quality design
  • 90W LED high bay light, excellent fin type heat conducting housing with quality design
  • 90W LED high bay light, excellent fin type heat conducting housing with quality design
90W LED high bay light, excellent fin type heat conducting housing with quality design
90W LED high bay light, excellent fin type heat conducting housing with quality design
90W LED high bay light, excellent fin type heat conducting housing with quality design
90W LED high bay light, excellent fin type heat conducting housing with quality design

90W LED high bay light, excellent fin type heat conducting housing with quality design

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Electrical parameters:
    • Built-in Meanwell LED driver
    • excellent fin type heat conducting housing with quality design, much faster heatsink ability
    • Each module is independent cooling
    • Lamp body color: Silver or black
    • Consumption power: 90W ±10%
    • Input voltages: 90 to 305V AC, 47 to 63Hz
    • Efficiency: >93%
    • PF: 0.98
      • >0.98: 115V AC
      • >0.95: 230V AC
      • >0.93: 277V AC at full load
  • Optical parameters:
    • Luminous flux:
      • Cold white: 9000lm ±10%
      • Neutral white: 8500lm ±10%
      • Warm white: 7800lm ±10%
    • Color temperatures: 2,700 to 7,000K
    • Working temperatures: -30 to 50°C
    • Color rendering index range: 72 to 80Ra
  • Physical parameters:
    • LED brand: COB (Bridgelux or Epistar)
    • LED quantity: 6 pieces
    • Reflector angle: 15/30/45°
    • Protection grade: IP65
    • LED lifespan: 50,000 hours
    • Dimensions: Ø260*180mm
    • Net weight: 3.5 kg
    • Certificates: CE, UL and TUV
    • Warranty: 3 years
  • Built-in Meanwell LED driver
  • excellent fin type heat conducting housing with quality design, much faster heatsink ability
  • Each module is independent cooling
  • Lamp body color: Silver or black
  • Consumption power: 90W ±10%
  • Input voltages: 90 to 305V AC, 47 to 63Hz
  • Efficiency: >93%
  • PF: 0.98
    • >0.98: 115V AC
    • >0.95: 230V AC
    • >0.93: 277V AC at full load
  • >0.98: 115V AC
  • >0.95: 230V AC
  • >0.93: 277V AC at full load
  • Luminous flux:
    • Cold white: 9000lm ±10%
    • Neutral white: 8500lm ±10%
    • Warm white: 7800lm ±10%
  • Color temperatures: 2,700 to 7,000K
  • Working temperatures: -30 to 50°C
  • Color rendering index range: 72 to 80Ra
  • Cold white: 9000lm ±10%
  • Neutral white: 8500lm ±10%
  • Warm white: 7800lm ±10%
  • LED brand: COB (Bridgelux or Epistar)
  • LED quantity: 6 pieces
  • Reflector angle: 15/30/45°
  • Protection grade: IP65
  • LED lifespan: 50,000 hours
  • Dimensions: Ø260*180mm
  • Net weight: 3.5 kg
  • Certificates: CE, UL and TUV
  • Warranty: 3 years
