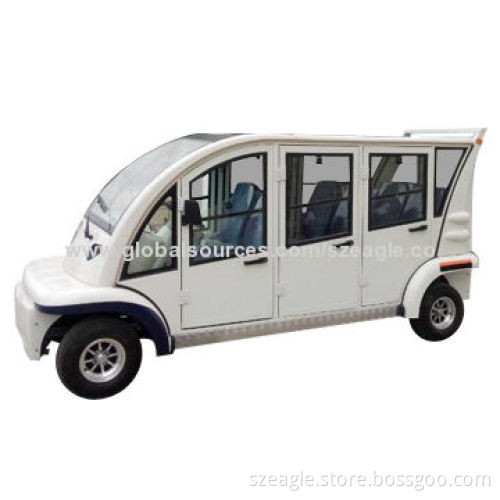

Enclosed Passenger Car, 6-seater, CE-certified, Battery Trojan, Aluminum Wheels

Get Latest Price

Payment Type:: Letter of Credit at Sight (Sight L/C)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit at Sight (Sight L/C)

Product Description

Key components power source: pure electric

Electric system 48V system (DC series and sepex and AC sepex)

Battery: Trojan

Motor: Chinese

Controller: Curtis

Input voltage: 110 to 240V at 50 to 60Hz

Output voltage: 48 and 25A

Performance: passenger capacity 6

Range (loaded) based on flat road at a speed of 20kph

Maximum speed: up to 40kph

Minimum turning radius: 4m

Maximum climbing ability (loaded): up to 25%

Maximum movement after brake at speed of 20kph ≤4m

Maximum loading weight: 530kg

Overall dimensions: 3750X1400X1810

Minimum ground clearance: 140mm

Wheelbase: 2450mm

Front wheel tread: 1160mm

Rear wheel tread: 1150mm

Body and frame welded steel framework with sand blasting + paint treatment

Body: fiberglass

Roof: fiberglass + steel frame

Electric system lighting system and horn 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn

Suspension steering system

Single-stage rack and pinion steering system and automatic rocker compensating function

Brake system: four wheel hydraulic drum brake + foot parking brake

Suspension system: independent suspension, helix spring + shock absorber (FW) and rear plate spring + shock absorber (RW)

Driving mode: rear axle two stage deceleration and motor direct driving

Rear axle gear ratio: 12.49:1

Integrated gear ratio: 10.25:1

Body color: up to 6 kinds of standard colors for option

Loading both assemble and disassemble are available
