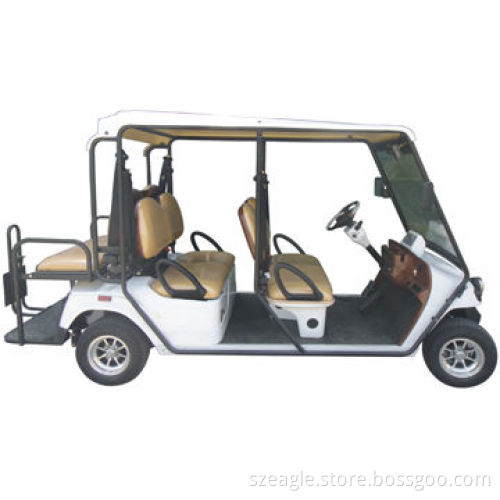

Homologated Electric Golf Cart, 4 Seats, EEC Homologated Street Legal, in EU

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Electric system: both AC and DC system are available

Battery: Trojan battery

Motor: AC/DC motor or Chinese motor

Controller: Curtis controller

Charger: China origin

Input voltage: 110 to 240V to 50/60Hz

Passenger capacity: 4

Range: (loaded) based on flat road at speed of 20km/hour, up to 100km

Maximum speed: up to 40km

Minimum turning radius: 4.5m

Maximum climbing ability: (loaded) up to 20%

Maximum movement after brake at speed: 20km/hour ≤4m

Maximum loading weight: 300kg

Dimensions: 3420 x 1290 x 2060mm

Minimum ground clearance: 120mm

Wheelbase: 2450mm

Front wheel tread: 855mm

Rear wheel tread: 975mm

Body and frame welded steel framework with phosphate + electro-coating treatment

Body: PP plastic front + PP plastic rear

Roof fiberglass

Electric system, lighting system and horn

Headlights, front turn signals, taillights with DC to DC converter, horn, reversing alarm

Steering, suspension steering system, single-stage rack, pinion steering system and automatic rocker compensating function

Brake system: 4 wheels hydraulic brake, front and rear drum brake with hand parking brake

Suspension system: front and rear plate spring + cylinder hydraulic shock absorb

Driving mode: rear axle two stage deceleration and motor direct driving

Rear axle: integrated, gear ratio 12.49:1 for AC system and 10.25:1 for DC system

Wheel and tire: 10x6 aluminum wheel and 205/50 to 10 4PR

Optional backrest covers in wooden finish
