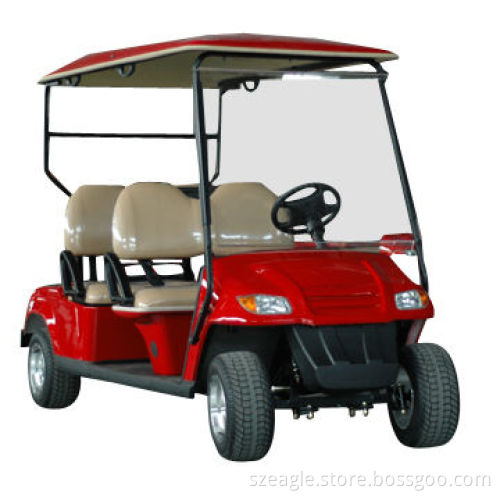

Electric Golf Carts, 4 Seats, CE Approved, All Seats Facing Forward, Curtis Controller, ADC Motor

Electric Golf Carts, 4 Seats, CE Approved, All Seats Facing Forward, Curtis Controller, ADC Motor

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Power source: pure electric
Electric system: both AC and DC systems are available
Battery: Trojan
Motor: ADC motor or Chinese motor
Controller: Curtis controller
Charger: China origin
Input: 110 to 240V and 50 to 60Hz
Passenger capacity: 4
Range (loaded) based on flat road at speed of 20kph is up to 100
Maximum speed: up to 40kph
Minimum turning radius: 3.5m
Maximum climbing ability (loaded): up to 25%
Maximum movement after brake at speed of 20kph: ≤4m
Maximum loading weight: 270kg
Dimensions:
- Overall dimensions: 2350 x 1180 x 1800mm
- Minimum ground clearance: 120mm
- Wheelbase: 1700mm
- Front wheel tread: 855mm
- Rear wheel tread: 975mm

Body and frame:

Frame: welded steel framework with phosphate + electro-coated treatment
Body: PP plastic front body + PP plastic rear body
Roof: injected plastic

Electric system, lighting system and horn: headlights, front turn signals, taillights, with DC to DC converter, horn and reversing alarm

Steering and suspension: steering system single-stage rack, pinion steering system and automatic rocker compensating function

Brake system: mechanical brake

Suspension system: front and rear plate spring + cylinder hydraulic shock absorber

Driving mode: rear axle two stage deceleration and motor direct driving

Rear axle: integrated

Wheel and tire: aluminum wheel and 205/50-10 tires

Options:

Hinged windshield
Stainless steel packing
Meter (available for 48V system)
2-point seat belt
Formed seat and backrest vinyl

Packing: wooden finish

Inner and side rear view mirror

Solar panel

Cooler

On-body charger

Right hand drive system

4-wheel hydraulic brake system

Enclosure

Body color: up to 6 kinds of standard color for option

Loading: both assembly and disassembly are available

Power source: pure electric

Electric system: both AC and DC systems are available

Battery: Trojan

Motor: ADC motor or Chinese motor

Controller: Curtis controller

Charger: China origin

Input: 110 to 240V and 50 to 60Hz

Passenger capacity: 4

Range (loaded) based on flat road at speed of 20kph is up to 100

Maximum speed: up to 40kph

Minimum turning radius: 3.5m

Maximum climbing ability (loaded): up to 25%

Maximum movement after brake at speed of 20kph: ≤4m

Maximum loading weight: 270kg

Dimensions:

Overall dimensions: 2350 x 1180 x 1800mm
Minimum ground clearance: 120mm
Wheelbase: 1700mm
Front wheel tread: 855mm
Rear wheel tread: 975mm

Overall dimensions: 2350 x 1180 x 1800mm

Minimum ground clearance: 120mm

Wheelbase: 1700mm

Front wheel tread: 855mm

Rear wheel tread: 975mm

Frame: welded steel framework with phosphate + electro-coated treatment

Body: PP plastic front body + PP plastic rear body

Roof: injected plastic

Hinged windshield

Stainless steel packing

Meter (available for 48V system)

2-point seat belt

Formed seat and backrest vinyl
