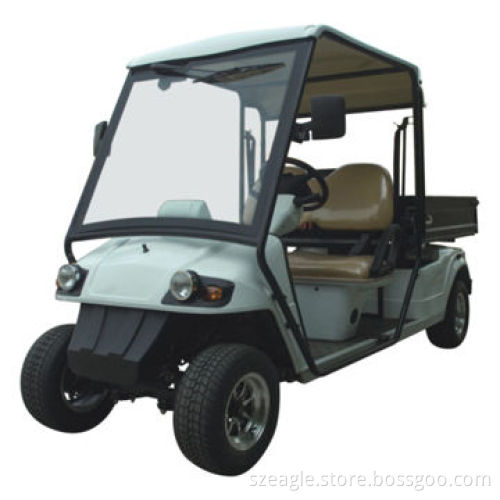

Road Legal Sports Utility Vehicle with Cargo Bed, EEC Street Legal, Homologated

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Electric system: both AC and DC systems are available

Battery: Trojan

Motor: AC/DC or Chinese

Controller: Curtis

Charger: China origin

Input voltage: 110 to 240V to 50/60Hz

Passenger capacity: 4

Range: (loaded) based on flat road at speed of 20kph, up to 100km

Maximum speed: up to 40km

Minimum turning radius: 4.5m

Maximum climbing ability: (loaded) up to 20%

Maximum movement after brake at speed: 20kph ≤4m

Maximum loading weight: 300kg

Dimensions: 3420 x 1290 x 2060mm

Minimum ground clearance: 120mm

Wheelbase: 2450mm

Front wheel tread: 855mm

Rear wheel tread: 975mm

Body and frame welded steel framework with phosphate + electro-coating treatment

Body: PP plastic front + PP plastic rear

Roof: fiberglass

Electric system, lighting system and horn

Headlights, front turn signals, taillights with DC to DC converter, horn and reversing alarm

Steering, suspension steering system, single-stage rack, pinion steering system and automatic rocker compensating function

Brake system: 4-wheel hydraulic brake, front and rear drum brake with hand parking brake

Suspension system: front and rear plate spring + cylinder hydraulic shock absorb

Driving mode: rear axle two stage deceleration and motor direct driving

Rear axle: integrated, gear ratio 12.49:1 for AC system and 10.25:1 for DC system

Wheel and tyre: 10 x 6 aluminum wheel and 205/50 to 10 4PR

Optional backrest cover in wooden finish
