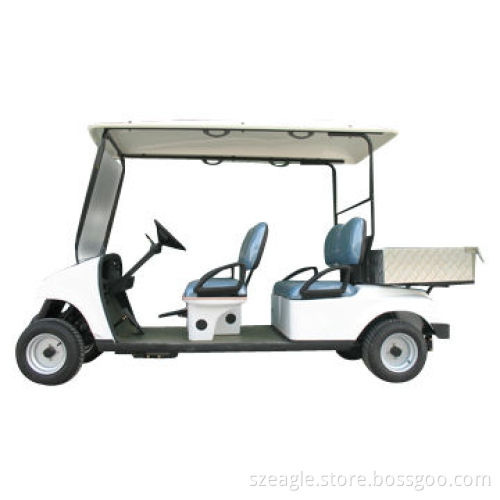

Electric Utility Golf Carts, 4 Seats, with Short Aluminum Cargo Box or Flat Bed, Short Top

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Key components:

Power source: pure electric
Electric system: both AC and DC system are available
Battery: Trojan
Motor: ADC or Chinese
Controller: Curtis
Charger: China original, 110 to 240V at 50 to 60Hz input

Performance:

Passenger capacity: 4
Range (loaded) based on flat road at a speed of 20kph: up to 90km
Maximum speed: up to 40kph
Minimum turning radius: 4.5m
Maximum climbing ability (loaded): up to 20%
Maximum movement after brake at speed of 20kph: ≤4m
Maximum loading weight: 450kg

Dimensions:

Overall dimensions: 3480x1180x1850mm
Rear cargo box: 770x1100x250mm
Minimum ground clearance: 120mm
Wheelbase: 2450mm
Front wheel tread: 855mm
Rear wheel tread: 975mm

Body and frame:

Frame: welded steel framework with phosphate and electro-coating treatment
Body: PP plastic front + PP plastic rear body
Roof: injected plastic

Electric system:

Lighting system and horn: headlights, front turn signals, taillights, with DC-DC converter, horn and reversing alarm

Steering and suspension:

Steering system: single-stage rack and pinion steering system, automatic rocker compensating function
Brake system: mechanical
Suspension system: front and rear plate spring + cylinder hydraulic shock absorber
Driving mode: rear axle two stage deceleration, motor direct driving
Rear axle: integrated
Wheel and tire: aluminum wheel and 205/50-10 tire

Optional:

Hinged windshield
Stainless steel packing
Meter (available for 48V system)
2-point seat belt
Formed seat and backrest vinyl
Wooden finish packing
Inner and side rear-view mirror
Solar panel
Cooler
On-body charger
Right hand drive system
4-wheel hydraulic brake system
Enclosure

Body color: up to 6 types of standard colors are optional

Loading: both assembly and disassembly are available

Power source: pure electric

Electric system: both AC and DC system are available

Battery: Trojan

Motor: ADC or Chinese

Controller: Curtis

Charger: China original, 110 to 240V at 50 to 60Hz input

Passenger capacity: 4

Range (loaded) based on flat road at a speed of 20kph: up to 90km

Maximum speed: up to 40kph

Minimum turning radius: 4.5m

Maximum climbing ability (loaded): up to 20%

Maximum movement after brake at speed of 20kph: ≤4m

Maximum loading weight: 450kg

Overall dimensions: 3480x1180x1850mm

Rear cargo box: 770x1100x250mm

Minimum ground clearance: 120mm

Wheelbase: 2450mm

Front wheel tread: 855mm

Rear wheel tread: 975mm

Frame: welded steel framework with phosphate and electro-coating treatment

Body: PP plastic front + PP plastic rear body

Roof: injected plastic

Lighting system and horn: headlights, front turn signals, taillights, with DC-DC converter, horn and reversing alarm

Steering system: single-stage rack and pinion steering system, automatic rocker compensating function

Brake system: mechanical

Suspension system: front and rear plate spring + cylinder hydraulic shock absorber

Driving mode: rear axle two stage deceleration, motor direct driving

Rear axle: integrated

Wheel and tire: aluminum wheel and 205/50-10 tire

Hinged windshield

Stainless steel packing

Meter (available for 48V system)

2-point seat belt

Formed seat and backrest vinyl

Wooden finish packing

Inner and side rear-view mirror

Solar panel

Cooler

On-body charger

Right hand drive system

4-wheel hydraulic brake system

Enclosure
