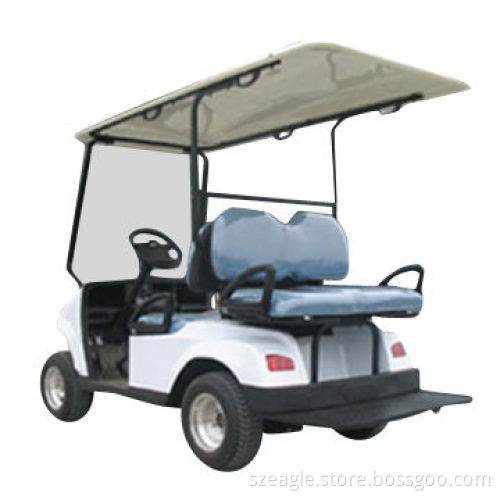

Electric Golf Buggy , 4-seat, CE-certified, with Flip-flops Seat
  • Electric Golf Buggy , 4-seat, CE-certified, with Flip-flops Seat
  • Electric Golf Buggy , 4-seat, CE-certified, with Flip-flops Seat
Electric Golf Buggy , 4-seat, CE-certified, with Flip-flops Seat
Electric Golf Buggy , 4-seat, CE-certified, with Flip-flops Seat

Electric Golf Buggy , 4-seat, CE-certified, with Flip-flops Seat

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Available products: electric vehicle, electric golf carts, electric bus, electric cars and electric scooter
  • Key components:
    • Power source: pure electric
    • Electric system: both AC and DC system are available
    • Battery: Trojan
    • Motor: ADC or Chinese
    • Controller: Curtis
    • Charger: China origin, 110 to 240V at 50 to 60Hz input
  • Performance:
    • Passenger capacity: 4
    • Range (loaded) based on flat road at speed of 20kph: up to 100km
    • Maximum speed: up to 40kph
    • Minimum turning radius: 3.5m
    • Maximum climbing ability (loaded): up to 25%
    • Maximum movement after brake at speed of 20kph: ≤4m
    • Maximum loading weight: 320kg
  • Dimensions:
    • Overall dimensions: 2920x1180x1890mm
    • Minimum ground clearance: 120mm
    • Wheelbase: 1700mm
    • Front wheel tread: 855mm
    • Rear wheel tread: 975mm
  • Body and frame:
    • Frame: welded steel framework with phosphate and electro-coating treatment
    • Body: PP plastic front + PP plastic rear body
    • Roof: injected plastic
  • Electric system:
    • Lighting system and horn: headlights, front turn signals, taillights, with DC-DC converter, horn and reversing alarm
  • Steering and suspension:
    • Steering system: single-stage rack and pinion steering system, automatic rocker compensating function
    • Brake system: mechanical
    • Suspension system: front and rear plate spring + cylinder hydraulic shock absorber
    • Driving mode: rear axle two stage deceleration, motor direct driving
    • Rear axle: integrated
    • Wheel and tire: aluminum wheel and 205/50-10 tire
  • Optional:
    • Hinged windshield
    • Stainless steel packing
    • Meter (available for 48V system)
    • 2-point seat belt
    • Formed seat and backrest vinyl
    • Wood finish packing
    • Inner and side rear view mirror
    • Solar panel
    • Cooler
    • On-body charger
    • Right hand drive system
    • 4-wheel hydraulic brake system
    • Enclosure
  • Body color: up to 6 types of standard colors for optional
  • Loading: both assembly and disassembly are available
  • Power source: pure electric
  • Electric system: both AC and DC system are available
  • Battery: Trojan
  • Motor: ADC or Chinese
  • Controller: Curtis
  • Charger: China origin, 110 to 240V at 50 to 60Hz input
  • Passenger capacity: 4
  • Range (loaded) based on flat road at speed of 20kph: up to 100km
  • Maximum speed: up to 40kph
  • Minimum turning radius: 3.5m
  • Maximum climbing ability (loaded): up to 25%
  • Maximum movement after brake at speed of 20kph: ≤4m
  • Maximum loading weight: 320kg
  • Overall dimensions: 2920x1180x1890mm
  • Minimum ground clearance: 120mm
  • Wheelbase: 1700mm
  • Front wheel tread: 855mm
  • Rear wheel tread: 975mm
  • Frame: welded steel framework with phosphate and electro-coating treatment
  • Body: PP plastic front + PP plastic rear body
  • Roof: injected plastic
  • Lighting system and horn: headlights, front turn signals, taillights, with DC-DC converter, horn and reversing alarm
  • Steering system: single-stage rack and pinion steering system, automatic rocker compensating function
  • Brake system: mechanical
  • Suspension system: front and rear plate spring + cylinder hydraulic shock absorber
  • Driving mode: rear axle two stage deceleration, motor direct driving
  • Rear axle: integrated
  • Wheel and tire: aluminum wheel and 205/50-10 tire
  • Hinged windshield
  • Stainless steel packing
  • Meter (available for 48V system)
  • 2-point seat belt
  • Formed seat and backrest vinyl
  • Wood finish packing
  • Inner and side rear view mirror
  • Solar panel
  • Cooler
  • On-body charger
  • Right hand drive system
  • 4-wheel hydraulic brake system
  • Enclosure
