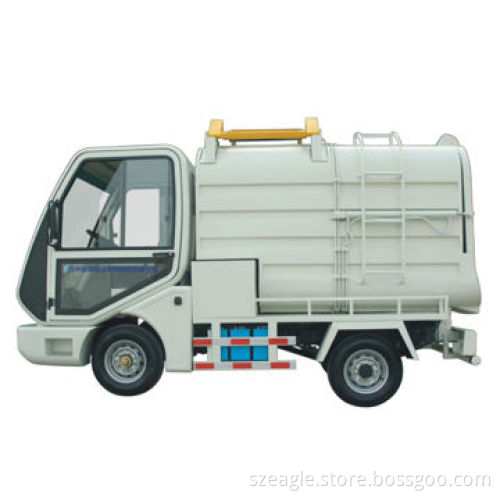

Electric liquid Garbage Collecting Truck, 1500kg Loading Capacity, with Garbage Bin Hydraulic Lifter

Electric liquid Garbage Collecting Truck, 1500kg Loading Capacity, with Garbage Bin Hydraulic Lifter

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Certification: CE

Available products: electric vehicle, electric golf carts, electric bus, electric cars and electric scooter

Battery deep cycle, lead-acid battery, trojan brand and imported

Motor power: 5kW DC

Controller curtis brand, series excited and imported

Passenger capacity: 2

Range (loaded) based on flat road at speed of 20kph: >55km

Maximum speed: 40kph

Minimum turning radius: 5.3m

Maximum climbing ability: 20%

Maximum loading weight: 2000kg

Overall dimensions: 4000x1500x2400mm

Cargo bed dimensions: 2330x1200x1400mm

Body and frame:

Frame: welded steel framework with sand blasting and paint treatment
Body: frame
Roof: FRP
Cabin: aluminum frame and glass door
Windshield: laminated
Large seats: sponge and artificial leather
Floor: bamboo board and rubber
Side rearview mirror

Electric system:

Lighting system and horn: 2 combined front lights (headlight, turning light, position light), 2 front fog light, 2 taillight (turn signals and brake lights), with DC-DC converter (converting from 72 to 12V) and horn
Dashboard meter: voltmeter, ammeter, odometer, emergency switch, combined switch and meter indicator
Audio system: radio and MP3 player adaptor, with 2 speakers
Wiper: 12V, 50W and single arm

Charger:

Input voltage: 110 to 240V at 50 to 60Hz
Output voltage: 48V and 25A

Steering and suspension:

Steering system: re-circulating ball steering gear and steering wheel
Brake system: four wheel hydraulic drum brake and parking brake
Brake assistant: vacuum
Transmission system: clutch, gear box and transmission shaft
Front suspension system: plate spring and hydraulic shock absorber
Rear suspension system: integrated rear end, rear plate spring and hydraulic shock absorber
Wheel and tyre: 185R14C tubeless tire, 14x5.5 J steel rim
Color:
- Body: pure white/pure black/pearl red/sapphire blue/green yellow/lake green Seat: white and tan
Provides various options like heater, seat belt and EPS

Frame: welded steel framework with sand blasting and paint treatment

Body: frame

Roof: FRP

Cabin: aluminum frame and glass door

Windshield: laminated

Large seats: sponge and artificial leather

Floor: bamboo board and rubber

Side rearview mirror

Lighting system and horn: 2 combined front lights (headlight, turning light, position light), 2 front fog light, 2 taillight (turn signals and brake lights), with DC-DC converter (converting from 72 to 12V) and horn

Dashboard meter: voltmeter, ammeter, odometer, emergency switch, combined switch and meter indicator

Audio system: radio and MP3 player adaptor, with 2 speakers

Wiper: 12V, 50W and single arm

Input voltage: 110 to 240V at 50 to 60Hz

Output voltage: 48V and 25A

Steering system: re-circulating ball steering gear and steering wheel

Brake system: four wheel hydraulic drum brake and parking brake

Brake assistant: vacuum

Transmission system: clutch, gear box and transmission shaft

Front suspension system: plate spring and hydraulic shock absorber

Rear suspension system: integrated rear end, rear plate spring and hydraulic shock absorber

Wheel and tyre: 185R14C tubeless tire, 14x5.5 J steel rim
