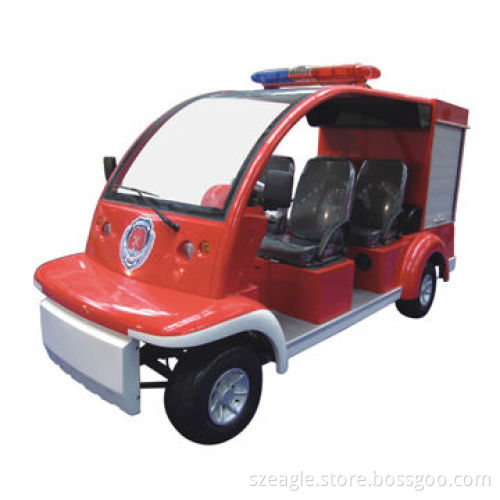

Electric Fire Fighting Truck, 400kg Loading Capacity, CE-certified

Electric Fire Fighting Truck, 400kg Loading Capacity, CE-certified

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Certification: CE

Battery deep cycle, Lead-acid battery, Trojan brand and imported

Motor power: 3.8kW DC/5kW AC

Controller Curtis brand, series excited and imported

Passenger capacity: 4mL

Range (loaded) based on flat road at speed of 20kph: >65 and 80km

Maximum speed: 25/40kph

Minimum turning radius: 4m

Maximum climbing ability: 20%

Maximum loading weight: 500kg

Overall dimensions: 3950x1400x2010mm

Cargo bed dimensions: 850x1120x1100mm

Body and frame:

Frame: welded steel framework with sand blasting and paint treatment
Body: FRP
Roof: FRP
Cabin: aluminum frame and glass door
Windshield: laminated glass
Large seats: with backrest and headrest and sliding
Floor: anti-sliding rubber floor mat
Side rear view mirror

Electric system:

Lighting system and horn: 2-combined front lights (headlight, turning light, position light), 2-front fog light, 2-taillight (turn signals and brake lights), with DC-DC converter (converting from 72 to 12V) and horn
Dashboard meter: voltmeter, ammeter, odometer, emergency switch, combined switch and meter indicator
Audio system: radio and MP3 player adapter, with 2 speakers
Wiper: 12V, 50W and single arm

Charger:

Input voltage: 110 to 240V at 50 to 60Hz
Output voltage: 72V and 25A

Steering and suspension:

Steering system: recirculating ball steering gear and steering wheel
Brake system: four wheel hydraulic drum brake and parking brake
Brake assistant: vacuum
Transmission system: clutch, gear box and transmission shaft
Front suspension system: plate spring and hydraulic shock absorber
Rear suspension system: integrated rear end, rear plate spring and hydraulic shock absorber
Wheel and tire: 20.5x8.0 to 10 tire, 6J-10 steel wheel and wheel cap
Color:
- Body: fire red
- Seat: black
Provides various options like heater, seat belt and EPS

Frame: welded steel framework with sand blasting and paint treatment

Body: FRP

Roof: FRP

Cabin: aluminum frame and glass door

Windshield: laminated glass

Large seats: with backrest and headrest and sliding

Floor: anti-sliding rubber floor mat

Side rear view mirror

Lighting system and horn: 2-combined front lights (headlight, turning light, position light), 2-front fog light, 2-taillight (turn signals and brake lights), with DC-DC converter (converting from 72 to 12V) and horn

Dashboard meter: voltmeter, ammeter, odometer, emergency switch, combined switch and meter indicator

Audio system: radio and MP3 player adapter, with 2 speakers

Wiper: 12V, 50W and single arm

Input voltage: 110 to 240V at 50 to 60Hz

Output voltage: 72V and 25A

Steering system: recirculating ball steering gear and steering wheel

Brake system: four wheel hydraulic drum brake and parking brake

Brake assistant: vacuum

Transmission system: clutch, gear box and transmission shaft

Front suspension system: plate spring and hydraulic shock absorber

Rear suspension system: integrated rear end, rear plate spring and hydraulic shock absorber

Wheel and tire: 20.5x8.0 to 10 tire, 6J-10 steel wheel and wheel cap
