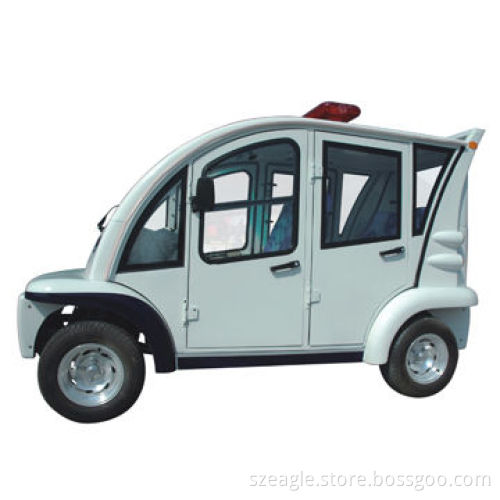

Closed Electric Vehicle with Aluminum Door, 4 Seats, CE Certified, Enclosed Hard Door

Closed Electric Vehicle with Aluminum Door, 4 Seats, CE Certified, Enclosed Hard Door

Get Latest Price

Payment Type:: Letter of Credit at Sight (Sight L/C)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit at Sight (Sight L/C)

Product Description

Key components:

Power source: pure electric
Electric system: 48V system (DC series, Sepex and AC Sepex)
Battery: Trojan battery
Motor: Chinese motor
Controller: Curtis controller
Inputs: 110 to 240V, 50 to 60Hz
Output: 48V, 25A

Performance:

Passenger capacity: 4
Range (loaded) based on flat road at a speed of 20kph (km): up to 65
Maximum speed: up to 40
Minimum turning radius: 4m
Maximum climbing ability (loaded): up to 25%
Maximum movement after brake at speed of 20kph: ≤4m
Maximum loading weight: 320kg

Dimensions:

Overall dimensions: 3060 x 1400 x 1900mm
Minimum ground clearance: 155mm
Wheel base: 2,710mm
Front wheel tread: 1210mm
Rear wheel tread: 1160mm

Body and frame:

Frame: welded steel framework with sand blasting and paint treatment
Body: fiberglass
Roof: fiberglass and steel frame

Electric system: lighting system and horn

2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48 to 12V), horn

Steering and suspension steering system: single-stage rack and pinion steering system, automatic rocker compensating function

Brake system: four wheel hydraulic drum brake and foot parking brake

Suspension system: independent suspension, helix spring + shock absorber (FW) and rear plate spring + shock absorber (RW)

Driving mode: rear axle two stage deceleration, motor direct driving

Rear axle: gear ratio 12.49:1

Wheel and tire: 225/55b12 6PR tire, 12X7 aluminum wheel

Options:

3 point seat belt
Rain cover
CD player
Solar panel

Body color: up to 6 kinds of standard colors for option

Loading both assembly and disassembly are available

Power source: pure electric

Electric system: 48V system (DC series, Sepex and AC Sepex)

Battery: Trojan battery

Motor: Chinese motor

Controller: Curtis controller

Inputs: 110 to 240V, 50 to 60Hz

Output: 48V, 25A

Passenger capacity: 4

Range (loaded) based on flat road at a speed of 20kph (km): up to 65

Maximum speed: up to 40

Minimum turning radius: 4m

Maximum climbing ability (loaded): up to 25%

Maximum movement after brake at speed of 20kph: ≤4m

Maximum loading weight: 320kg

Overall dimensions: 3060 x 1400 x 1900mm

Minimum ground clearance: 155mm

Wheel base: 2,710mm

Front wheel tread: 1210mm

Rear wheel tread: 1160mm

Frame: welded steel framework with sand blasting and paint treatment

Body: fiberglass

Roof: fiberglass and steel frame

3 point seat belt

Rain cover

CD player

Solar panel
