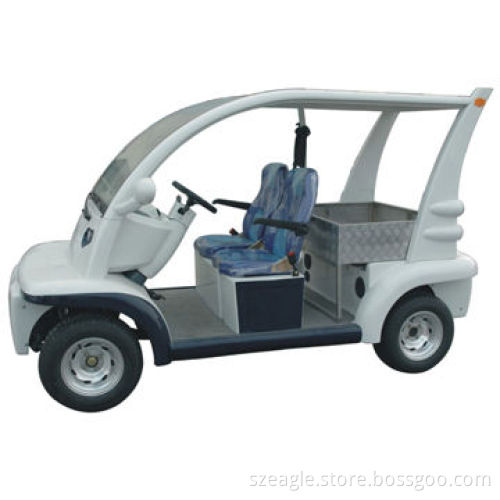

European Street Legal Electric Vehicle, 2 Seats, EEC Approved, Homologated, E-mark Light, Seat Belts

European Street Legal Electric Vehicle, 2 Seats, EEC Approved, Homologated, E-mark Light, Seat Belts

Get Latest Price

Payment Type:: Letter of Credit at Sight (Sight L/C)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit at Sight (Sight L/C)

Product Description

With aluminum cargo bed

Maximum speed: 40kph

Maximum range: 80km

Certifications: EEC and L7e

Key components:

Power source: pure electric
Electric system: 48V system (DC series, sepex and AC sepex)
Battery: Trojan battery
Motor: Chinese motor
Controller: Curtis controller
Charger: China origin
Input: 110 to 240V, 50 to 60Hz
Output: 48V, 25A

Performance:

Passenger capacity: 2
Range (loaded) based on flat road at speed of 20kph: up to 80km
Maximum speed: up to 40
Minimum turning radius: 4m
Maximum climbing ability (loaded): up to 25%
Maximum movement after brake at speed of 20kph: ≤4m
Maximum loading weight: 320kg

Dimensions:

Overall dimensions: 3060x1400x1900mm
Minimum ground clearance: 140mm
Wheelbase: 2080mm
Front wheel tread: 1210mm
Rear wheel tread: 1160mm

Body and frame:

Frame: welded steel framework with sand blasting and paint treatment
Body: fiberglass
Roof: fiberglass and steel frame

Electric system: lighting system and horn

2-headlight, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48 to 12V), horn

Steering and suspension steering system: single-stage rack and opinion steering system, automatic rocker compensating function

Brake system: four wheel hydraulic drum brake and foot parking brake

Suspension system: independent suspension, helix spring + shock absorber (FW) and rear plate spring + shock absorber (RW)

Driving mode: rear axle two stage deceleration, motor direct driving

Rear axle: gear ratio 10.25:1

Wheel and tyre: 225/55b12 6PR tire, 12x7 aluminum wheel

Options:

Inner rear view mirror
Rain cover
CD player
Solar panel

Body color: up to 6 kinds of standard color for option

Loading: both assembly and disassembly are available

Power source: pure electric

Electric system: 48V system (DC series, sepex and AC sepex)

Battery: Trojan battery

Motor: Chinese motor

Controller: Curtis controller

Charger: China origin

Input: 110 to 240V, 50 to 60Hz

Output: 48V, 25A

Passenger capacity: 2

Range (loaded) based on flat road at speed of 20kph: up to 80km

Maximum speed: up to 40

Minimum turning radius: 4m

Maximum climbing ability (loaded): up to 25%

Maximum movement after brake at speed of 20kph: ≤4m

Maximum loading weight: 320kg

Overall dimensions: 3060x1400x1900mm

Minimum ground clearance: 140mm

Wheelbase: 2080mm

Front wheel tread: 1210mm

Rear wheel tread: 1160mm

Frame: welded steel framework with sand blasting and paint treatment

Body: fiberglass

Roof: fiberglass and steel frame

Inner rear view mirror

Rain cover

CD player

Solar panel
