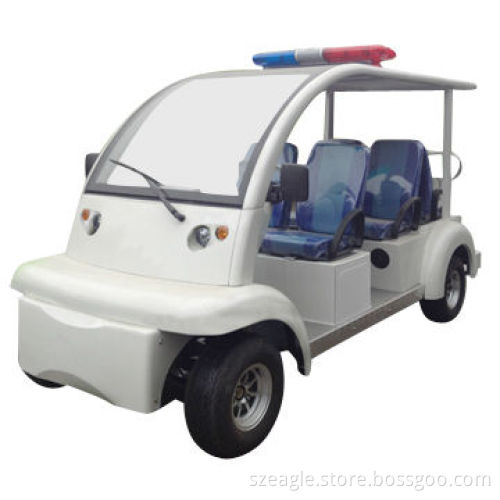

6-seater Electric Security Cart, CE Certified, for Road Security and Patrol Purpose

6-seater Electric Security Cart, CE Certified, for Road Security and Patrol Purpose

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Key components power source: pure electric

Electric system: 48V system (DC series/Sepex and AC Sepex)

Battery: Trojan

Motor: Chinese

Controller: Curtis

Charger:

Input: 110 to 240V at 50 to 60Hz
Output: 48V (25A)

Performance passenger capacity: 6

Range (loaded) based on flat road at speed: 20kph (up to 90km)

Maximum speed: up to 40rpm

Minimum turning radius: 4m

Maximum climbing ability (loaded): up to 25%

Maximum movement after brake at speed: 20kph (≤4m)

Maximum loading weight: 480kg

Overall dimensions: 3750x1400x1810mm

Minimum ground clearance: 140mm

Wheelbase: 2450mm

Front wheel tread: 1160mm

Rear wheel tread: 1150mm

Body and frame: welded steel framework with sand blasting and paint treatment

Body: fiberglass

Roof: fiberglass and steel frame

Electric system: lighting system, horn, 2-headlight, 2-front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V) and horn

Steering and suspension: steering system single-stage rack and pinion steering system, automatic rocker compensating function

Brake system: four wheel hydraulic drum brake and foot parking brake

Suspension system: independent suspension, helix spring, shock absorber (FW), rear plate spring and shock absorber (RW)

Driving mode: rear axle two stage deceleration and motor direct driving

Rear axle gear ratio: 12.49:1

Wheel and tire:

20.5x8.0-10
6J-10 steel, (wheel cap)

Optional 3-point seat belt

Inner rear-view mirror

Rain cover

CD player

Solar panel

Integrated, gear ratio: 10.25:1

10 x 6 aluminum wheel

Body color: up to 6 kinds of standard color for option

Loading: both assembly and dis-assembly are available

Input: 110 to 240V at 50 to 60Hz

Output: 48V (25A)

20.5x8.0-10

6J-10 steel, (wheel cap)
