Hot Knife Foam Cutter, CE Certified

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

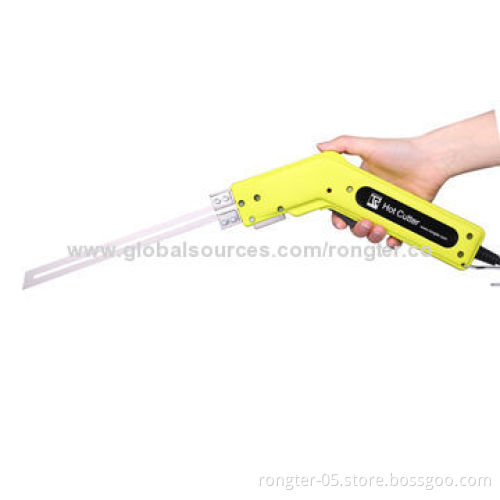

Hot knife is professional-grade hot cutting tool for foamed plastics

Hot knife heats up in seconds and gives the operator temperature control

Never before has working with foamed plastics been this easy, inexpensive and free of mess

Features:

Professional grade hot cutting tool for foamed plastic
Heats up in seconds and gives operating temperature control
Never before has working with foamed plastics been this easy, inexpensive and free of mess
Normally handheld tool with handle and heated blade
Designed for cutting EPS foam (Styrofoam) or similar type of insulating foam

Processing:

Foam cutter/grooving cutter is FPR cutting various density foams with fine cutting edge and no mess
Cutting with groove-sled, easy to make various groove shapes on foam
Cut rope and webbing with fine cutting edge, no disperse
Attached with cutting foot, hot knife cut three synthetic fiber cloth without backup under cloth, seal cutting edge as well and cut seal line on bag
Especially nice for cutting sail cloth, awnings and filter cloth

Preparations:

Select a hot knife blade corresponding to the cutting use
Loosen the knurled nut when device is cold
Insert each leg of the blade and tighten the knurled nuts
Make sure that the blade and the cutting head have optimal contact
If both legs of the blade are not properly installed, the unit will not heat up

Cutting:

Actuate switch, the indicator light and the blade will heat up
Avoid direct short circuit between cutting heads
Don’t use metallic rulers for guiding the blade
Clean cutting heads with enclosed wire brush
Please make sure the blade is connected to the cutting material before blade heats up

Cautions:

Always operate the hot knife in well ventilated space
Never burn off the excess residue on the hot knife blade, blades will over heated and be warped
Only operate hot knife when it is in contact with the insulation board
Keep hot blades away from skin, clothing and other flammable materials
Allow blades to cool before handling, hot knife may cause injury or burns to exposed surfaces
If the temperature inside the tool is too high, the unit will get hot and the internal thermal protectors will turn it off, after it cool, the hot knife will operate again

Packing:

Inner: plastic or Al toolbox
Outer: carton (small, medium and large) and wooden box or customized

Professional grade hot cutting tool for foamed plastic

Heats up in seconds and gives operating temperature control

Never before has working with foamed plastics been this easy, inexpensive and free of mess

Normally handheld tool with handle and heated blade

Designed for cutting EPS foam (Styrofoam) or similar type of insulating foam

Foam cutter/grooving cutter is FPR cutting various density foams with fine cutting edge and no mess

Cutting with groove-sled, easy to make various groove shapes on foam

Cut rope and webbing with fine cutting edge, no disperse

Attached with cutting foot, hot knife cut three synthetic fiber cloth without backup under cloth, seal cutting edge as well and cut seal line on bag

Especially nice for cutting sail cloth, awnings and filter cloth

Select a hot knife blade corresponding to the cutting use

Loosen the knurled nut when device is cold

Insert each leg of the blade and tighten the knurled nuts

Make sure that the blade and the cutting head have optimal contact

If both legs of the blade are not properly installed, the unit will not heat up

Actuate switch, the indicator light and the blade will heat up

Avoid direct short circuit between cutting heads

Don’t use metallic rulers for guiding the blade

Clean cutting heads with enclosed wire brush

Please make sure the blade is connected to the cutting material before blade heats up

Always operate the hot knife in well ventilated space

Never burn off the excess residue on the hot knife blade, blades will over heated and be warped

Only operate hot knife when it is in contact with the insulation board

Keep hot blades away from skin, clothing and other flammable materials

Allow blades to cool before handling, hot knife may cause injury or burns to exposed surfaces

If the temperature inside the tool is too high, the unit will get hot and the internal thermal protectors will turn it off, after it cool, the hot knife will operate again

Inner: plastic or Al toolbox

Outer: carton (small, medium and large) and wooden box or customized
