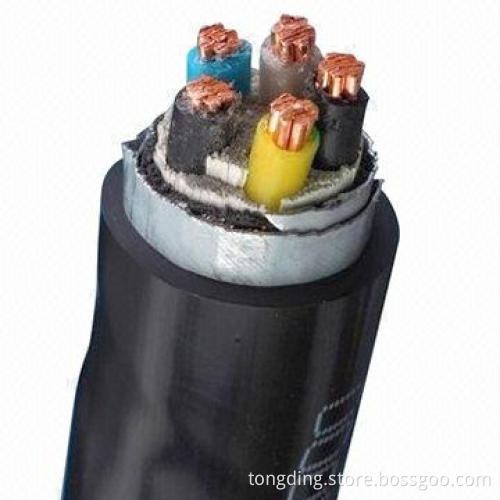

XLPE Insulation Power/Electrical Cable with Aluminum Tape Armored

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, L/C at Sight

Product Description

Rated voltage Uo/U: 0.6 or 1kV

pH: ≥4.3

Conductivity: ≤10μs/mm

Maximum conductor temperature: 90°C

Smoking density penetration ratio: ≥60%

Short-circuit temperature: less than 250°C (less than 5s)

Ambient installation temperature shall be not lower than 0°C

Cu conductor

Flame-retardant, fire-resistant and flexible

Low-smoke, zero-halogen polyolefin insulated and sheathed steel-tape armored

Minimum bending radius:

For single-core cable: 20mm (D+d)
For multi-core cable 15mm (D+d) (D: cable outside diameter and d: nominal diameter of main conductor)

Cable can laid aerially in trough or underground

Standards:

For single-core cable: 20mm (D+d)

For multi-core cable 15mm (D+d) (D: cable outside diameter and d: nominal diameter of main conductor)

Fire-resistant properties of cable: GB/T 12666

Flame-retardant cable: GB/T 18380.3-2001(IEC60332-3-22: 2000) for category A

Low smoke zero halogen characters complying: GB/T17650-1998 and GB/T17651-1998
