Product Description

Structure:

Conductor: 23/24AWG copper
Insulation: PVC and PE
Jacket: PVC and PE
Average jacket thickness: 0.6mm
Number of pairs: 2, 4, 10 and 25

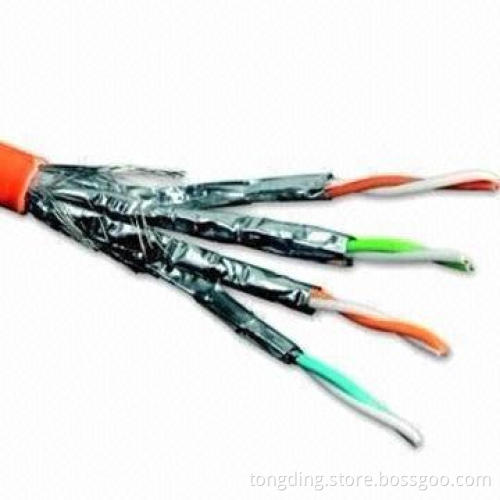

Solid copper conductor, PE insulation, pairs twisted by 2 insulated wires, cross frame, polyester wrapping and single side plastic filmed aluminum foil coating, tinned copper braid PVC or LSZH jacket

Electrical performance (at 250MHz):

1.0 to 100.0MHz impedance: 100 ±15Ω
100.0 to 250.0MHz impedance: 100 ±22Ω

Impedance delay screw: Pair to ground capacitance unbalance: 330pF/100m (maximum)

Conductor DC resistance: 20%, Resistance unbalance: 5%

Test object: jacket

Test material: PVC and LSZH

Tensile strength: ≥13.8MPa

Aging elongation: ≥100%

Aging condition: 100°C x 240 hours

After tensile strength: ≥85MPa of un-aged

Aging elongation: ≥50% of aged

Cold bend: no crock (-20 ±2°C x 4 hours)

Applications:

Horizontal cabling in working area
Used for voice system, ISDN, ATM-25/51/155Mbps, 10Base-T, 100Base-TX/T4 and 1000Base-T

Standards: YD/T1019-2001, TIA/EIA-568B and ISO/IEC 61156

Packing:

Quantity: 100, 200, 305m/wooden roll, 100, 200 and 300 yards/roll
Inner: wooden, plastic and paper reel
Outer: carton, pull out box and pallet
Carton dimensions: (L) 70 x (W) 70 x (H) 60cm
Weight: 202.12kg

Conductor: 23/24AWG copper

Insulation: PVC and PE

Jacket: PVC and PE

Average jacket thickness: 0.6mm

Number of pairs: 2, 4, 10 and 25

Solid copper conductor, PE insulation, pairs twisted by 2 insulated wires, cross frame, polyester wrapping and single side plastic filmed aluminum foil coating, tinned copper braid PVC or LSZH jacket

1.0 to 100.0MHz impedance: 100 ±15Ω

100.0 to 250.0MHz impedance: 100 ±22Ω

Horizontal cabling in working area

Used for voice system, ISDN, ATM-25/51/155Mbps, 10Base-T, 100Base-TX/T4 and 1000Base-T

Quantity: 100, 200, 305m/wooden roll, 100, 200 and 300 yards/roll

Inner: wooden, plastic and paper reel

Outer: carton, pull out box and pallet

Carton dimensions: (L) 70 x (W) 70 x (H) 60cm

Weight: 202.12kg
