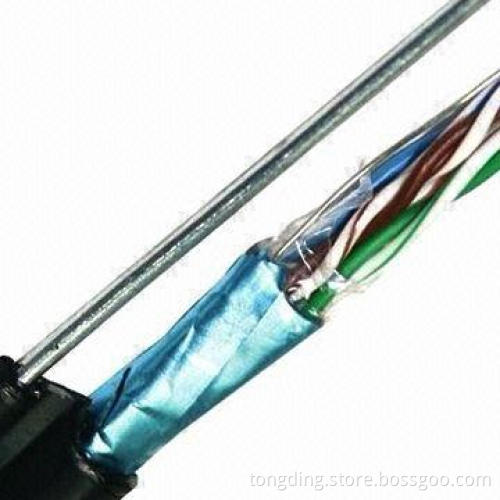

UTP Cat5e Networking Cable with Self-support Wire

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Structure:

Solid copper conductor
PE insulation and jacket
Pairs twisted by 2 insulated wires, filling compound and polyester wrapping tape

Electrical characteristics:

Impedance delay screw: > 45ns/100m

Pair to ground capacitance unbalance: 330pF/100m (maximum)

Conductor DC resistance: 20%, >73.2Ω/km

Resistance unbalance: 5%

Test object: jacket

Test materials: PVC and LSZH

Tensile strength: ≥13.8MPa

Aging elongation: ≥100%

Aging condition: 100°C x 240 hours

After tensile strength: ≥85MPa of un-aged

Aging elongation: ≥50% of aged

Cold bend: no crock (-20 ±2°C x 4 hours)

Applications:

Standards: YD/T1019-2001, TIA/EIA-568B and IEC61156

Packaging:

Solid copper conductor

PE insulation and jacket

Pairs twisted by 2 insulated wires, filling compound and polyester wrapping tape

1.0 to 100.0MHz impedance: 100 ±15Ω

100.0 to 250.0MHz impedance: 100 ±22Ω

Horizontal cabling in working area

Used for voice system, ISDN, ATM-25/51/155Mbps, 10Base-TX/T4 and 1000Base-T

Quantity: 100, 200, 305m/wooden roll, 100, 200 and 300 yards/roll

Inner: wooden, plastic and paper reel

Outer: carton or pull out box and pallet

Carton dimensions: (L) 70 x (W) 70 x (H) 60cm

Weight: 202.12kg
