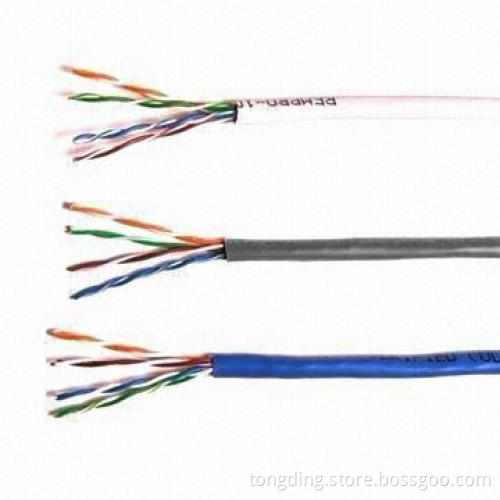

UTP Cat6 Networking Cables with PVC and PE Jacket

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Structure:

Electrical performance (at 250MHz):

Impedance delay screw: greater than 45ns/100m

Pair to ground capacitance unbalance: 330pF/100m maximum

Conductor DC resistance: 20%, greater than 73.2Ω/km

Resistance unbalance: 5%

Test object: jacket

Test materials: PVC and LSZH

Tensile strength: ≥13.8MPa

Aging elongation: ≥100%

Aging condition: 100°C x 240 hours

After tensile strength: ≥85% MPA of un-aged

Aging elongation: ≥50% of aged

Cold bend: no crock (-20 ±2°C x 4 hours)

Applications:

Horizontal cabling in working area
Used in voice system, ISDN, ATM-25/51/155Mbps, 10Base-T, 100Base-TX/T4 and 1000Base-T

Standards: YD/T1019-2001, TIA/EIA-568B and ISO/IEC 61156

Packing:

Each part of this series can be sold separately: HSYV-6 and HSYZ-6

Conductor: copper and 23/24AWG

Insulation: PVC and PE

Jacket: PVC and PE

Average jacket thickness: 0.6mm

Number of pairs: 2, 4, 10 and 25

Pairs twisted by 2 insulated wires, cross frame

1.0 to 100.0MHz impedance: 100 ±15Ω

100.0 to 250.0MHz impedance: 100 ±22Ω

Horizontal cabling in working area

Used in voice system, ISDN, ATM-25/51/155Mbps, 10Base-T, 100Base-TX/T4 and 1000Base-T

100, 200, 305m/wooden roll, 100, 200 and 300 yards/roll

Inner: wooden, plastic and paper reel

Outer: carton box, pull out box and pallet

Carton dimensions: (L) 70 x (W) 70 x (H) 60cm

Weight: 202.12kg
