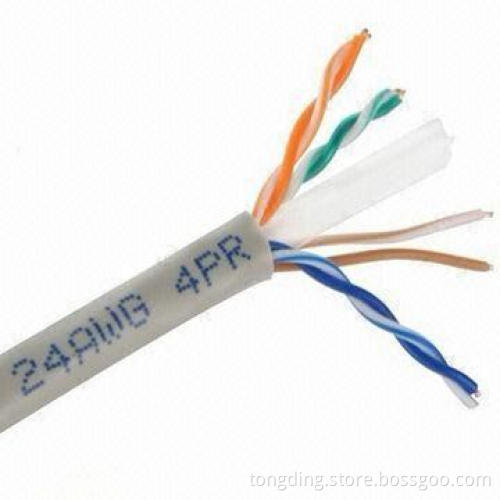

UTP Cat5 Networking/LAN/Copper Cable with PVC/LSZH Jacket

UTP Cat5 Networking/LAN/Copper Cable with PVC/LSZH Jacket

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Pairs twisted by 2 insulated wire

Polyester wrapping tape, PE jacket

Jacket: PVC and LSZH

250/550MHz ATM 155, 100Mbps TPDDI, fast Ethernet

Conductor:

Material: solid bare copper
Number of pairs: 4 pairs
AWG: 23
Conductor diameter: 0.57 ±0.003mm

Insulation:

Materials: HDPE and FRPE
Diameter: 1.02 ±0.005mm
Average thickness: 0.225mm
Minimum point thickness: 0.2245mm

Sheath:

Materials: PVC or LSOH
Nominal diameter: 6.0 ±0.2mm
Average thickness: 0.55mm
Minimum point thickness: 0.545mm

Electrical characteristics:

Impedance: 100 ±15Ω
Return resistance: 9.4/100mΩ
Unbalance resistance: 5% (maximum)
Static electric capacity: 73.2pF/100m
Communicate rate: 65%
Operating temperature: -20 to 75°C
Minimum bend radius (install): (OD) 8mm

Flame test: CMX, CM, CMR and IEC60332-1

Reference standards: TIA/EIA568B and IEC

Compliance: ETL verified ANSI TIA/EIA568-2, UL subject 444 (UL) c (UL) type CMR/CMG

Type CM/CMH, NEC article 800 type CMP or CM

Includes:

BC conductor
PE insulation
Overall Mylar shield
TC braid shield
Rid cord
PVC sheath

Available in various color jackets

Used for 100Base-TX, 100VG-any LAN, 1000Base-T, ATM, noisy environment

Certifications: CE

RoHS Directive-compliant

Packing:

Easy pull box 3 inner box into 1 outbox
Quantity: 305m/1000ft/box/spool

Loading quantity:

20ft container: 1050 boxes
40ft container: 2500 boxes

Material: solid bare copper

Number of pairs: 4 pairs

AWG: 23

Conductor diameter: 0.57 ±0.003mm

Materials: HDPE and FRPE

Diameter: 1.02 ±0.005mm

Average thickness: 0.225mm

Minimum point thickness: 0.2245mm

Materials: PVC or LSOH

Nominal diameter: 6.0 ±0.2mm

Average thickness: 0.55mm

Minimum point thickness: 0.545mm

Impedance: 100 ±15Ω

Return resistance: 9.4/100mΩ

Unbalance resistance: 5% (maximum)

Static electric capacity: 73.2pF/100m

Communicate rate: 65%

Operating temperature: -20 to 75°C

Minimum bend radius (install): (OD) 8mm

BC conductor

PE insulation

Overall Mylar shield

TC braid shield

Rid cord

PVC sheath

Easy pull box 3 inner box into 1 outbox

Quantity: 305m/1000ft/box/spool

20ft container: 1050 boxes

40ft container: 2500 boxes
