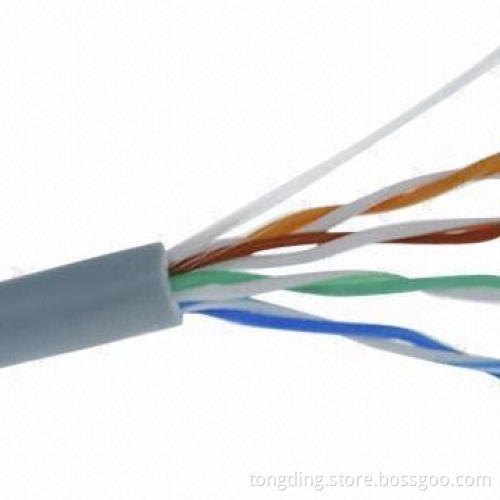

UTP Cat5 Networking/LAN/Communication Cable, UL Certified

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Structure:

Conductor: copper, 23 or 24AWG
Insulation and jacket: PVC or PE
Average jacket thickness: 0.6mm
Number of pairs: 2, 4, 10 and 25
Pairs twisted by 2 insulated wires, cross frame, polyester wrapping and single side plastic filmed aluminum foil coating, tinned copper braid PVC or LSZH jacket

Electrical performance (at 250MHz):

1.0 to 100.0MHz impedance: 100 ±15Ω
100.0 to 250.0MHz impedance: 100 ±22Ω

Impedance delay screw: Pair to ground capacitance unbalance: (PF/100m) 330 (maximum)

Conductor DC resistance: 20%, Resistance unbalance: 5%

Test object: jacket

Test materials: PVC and LSZH

Tensile strength: ≥13.8MPa

Aging elongation: ≥100%

Aging condition: 100°C x 240 hours

After tensile strength: ≥85MPa of unaged

Aging elongation: ≥50% of aged

Cold bend: no crock (-20 ±2°C x 4 hours)

Applications:

Horizontal cabling in working area
Used in voice system, ISDN, ATM-25/51/155Mbps, 10base-T, 100base-TX/T4 and 1000base-T

Dimensions: (L) 70 x (W) 70 x (H) 60cm

Weight: 202.12kg

Packaging:

Quantity: 305m/wooden reel, 100, 200, 305m/roll, 100, 200 and 300 yards/roll
Inner: wooden, plastic and paper reel
Outer: carton box, pullout box and pallet

Conductor: copper, 23 or 24AWG

Insulation and jacket: PVC or PE

Average jacket thickness: 0.6mm

Number of pairs: 2, 4, 10 and 25

Pairs twisted by 2 insulated wires, cross frame, polyester wrapping and single side plastic filmed aluminum foil coating, tinned copper braid PVC or LSZH jacket

1.0 to 100.0MHz impedance: 100 ±15Ω

100.0 to 250.0MHz impedance: 100 ±22Ω

Horizontal cabling in working area

Used in voice system, ISDN, ATM-25/51/155Mbps, 10base-T, 100base-TX/T4 and 1000base-T

Quantity: 305m/wooden reel, 100, 200, 305m/roll, 100, 200 and 300 yards/roll

Inner: wooden, plastic and paper reel

Outer: carton box, pullout box and pallet
