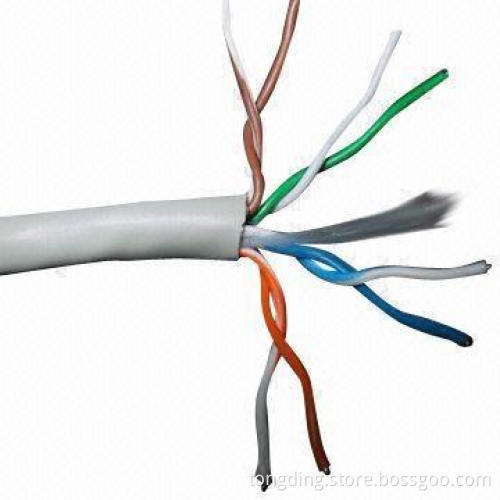

UTP CAT 5e Networking Cable, UL Certified
  • UTP CAT 5e Networking Cable, UL Certified
UTP CAT 5e Networking Cable, UL Certified

UTP CAT 5e Networking Cable, UL Certified

Get Latest Price
Payment Type:
T/T, L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C
Product Description
Product Description
  • Features:
    • Tested from 1 to 350MHz and offers guaranteed headroom to Category 5e TIA-568 C.2 cable requirements
    • Guaranteed gigabit throughput
    • Components are twisted into pairs with varying left-hand lays to minimize cross-talk
    • Reverse sequential numbering to eliminate guesswork of footage in box or reel
    • Compatible with OCC Cat 5E jacks and patch panels for optimal system performance
    • Available in UTP riser and plenum
  • Specifications:
    • Conductor: 24 AWG (0.020-inch) solid bare copper
    • Color code:
      • Pair 1: blue, white/blue
      • Pair 2: orange, white/orange
      • Pair 3: green, white/green
      • Pair 4: brown, white/brown
    • Jacket:
      • Riser: flame-retardant PVC, UL listed type FT4 per UL 444
      • Plenum: low smoke flame-retardant PVC, UL listed type FT6 per UL 444
    • Ripcord: applied longitudinally under jacket
    • Category 5e electrical characteristics:
      • Characteristic impedance: 100 ±15Ω (0.772 to 100MHz)
      • Maximum conductor resistance: 9.38Ω/100m at 20°C
      • Maximum resistance unbalanced: 5%
      • Maximum mutual capacitance: 5.6nF/100m at 1kHz
      • Maximum capacitance unbalanced: 330pF/100m
      • Maximum delay skew: 45ns/100m
  • Applications:
    • 1000BASE-T gigabit Ethernet
    • 100BASE-TX fast Ethernet
    • 100Mbps TP-PMD
    • 155/622/1000Mbps ATM
    • Broadband video
    • 4/16Mbps token ring
    • Voice
    • All other applications developed for operation over Category 5e cabling
  • Standards:
    • ANSI/TIA 568-C.2, CAT 5e
    • ISO/IEC 11801, 2nd edition, class E and cat 5e component
    • ICEA S-90-661 (Cat 5e)
    • NEC/CEC type CMR (UL 1666) non-plenum
    • NEC/CEC type CMP (NFPA 262) plenum
    • RoHS Directive-compliant
  • Tested from 1 to 350MHz and offers guaranteed headroom to Category 5e TIA-568 C.2 cable requirements
  • Guaranteed gigabit throughput
  • Components are twisted into pairs with varying left-hand lays to minimize cross-talk
  • Reverse sequential numbering to eliminate guesswork of footage in box or reel
  • Compatible with OCC Cat 5E jacks and patch panels for optimal system performance
  • Available in UTP riser and plenum
  • Conductor: 24 AWG (0.020-inch) solid bare copper
  • Color code:
    • Pair 1: blue, white/blue
    • Pair 2: orange, white/orange
    • Pair 3: green, white/green
    • Pair 4: brown, white/brown
  • Jacket:
    • Riser: flame-retardant PVC, UL listed type FT4 per UL 444
    • Plenum: low smoke flame-retardant PVC, UL listed type FT6 per UL 444
  • Ripcord: applied longitudinally under jacket
  • Category 5e electrical characteristics:
    • Characteristic impedance: 100 ±15Ω (0.772 to 100MHz)
    • Maximum conductor resistance: 9.38Ω/100m at 20°C
    • Maximum resistance unbalanced: 5%
    • Maximum mutual capacitance: 5.6nF/100m at 1kHz
    • Maximum capacitance unbalanced: 330pF/100m
    • Maximum delay skew: 45ns/100m
  • Pair 1: blue, white/blue
  • Pair 2: orange, white/orange
  • Pair 3: green, white/green
  • Pair 4: brown, white/brown
  • Riser: flame-retardant PVC, UL listed type FT4 per UL 444
  • Plenum: low smoke flame-retardant PVC, UL listed type FT6 per UL 444
  • Characteristic impedance: 100 ±15Ω (0.772 to 100MHz)
  • Maximum conductor resistance: 9.38Ω/100m at 20°C
  • Maximum resistance unbalanced: 5%
  • Maximum mutual capacitance: 5.6nF/100m at 1kHz
  • Maximum capacitance unbalanced: 330pF/100m
  • Maximum delay skew: 45ns/100m
  • 1000BASE-T gigabit Ethernet
  • 100BASE-TX fast Ethernet
  • 100Mbps TP-PMD
  • 155/622/1000Mbps ATM
  • Broadband video
  • 4/16Mbps token ring
  • Voice
  • All other applications developed for operation over Category 5e cabling
  • ANSI/TIA 568-C.2, CAT 5e
  • ISO/IEC 11801, 2nd edition, class E and cat 5e component
  • ICEA S-90-661 (Cat 5e)
  • NEC/CEC type CMR (UL 1666) non-plenum
  • NEC/CEC type CMP (NFPA 262) plenum
  • RoHS Directive-compliant
