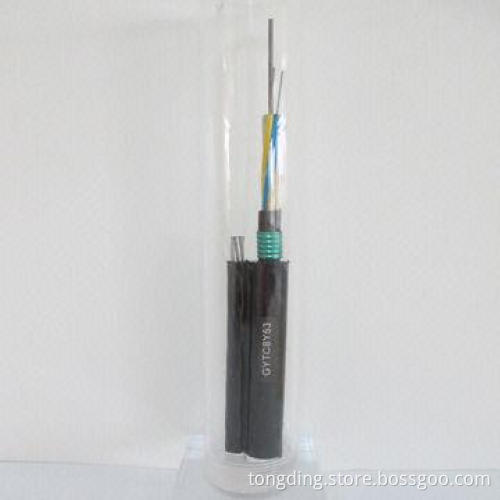

Metallic Aerial/Duct Fiber-optic Cable, 2 to 288 Fiber Count
  • Metallic Aerial/Duct Fiber-optic Cable, 2 to 288 Fiber Count
Metallic Aerial/Duct Fiber-optic Cable, 2 to 288 Fiber Count

Metallic Aerial/Duct Fiber-optic Cable, 2 to 288 Fiber Count

Get Latest Price
Payment Type:
T/T, L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C
Product Description
Product Description
  • Features:
    • Low loss and dispersion
    • Proper design and precise excess length control offer nice mechanical and environment-properties to cable
    • Corrugated steel tape armor brings better humidity proof performance and side pressure resistance
    • Compact construction, lightweight and self-supporting installation
    • All characteristics of cable fiber (fiber of finished cable) shall be, at least, in accordance with ITU-T G.657A/G.652D/G.652C standards
    • Applicable to long distance, inter-exchange communication, CATV and computer network transmission system
  • Specifications:
    • Fiber count: 2 to 288
    • Minimum bend radius:
      • Static: 10D
      • Dynamic: 20D
    • Cable bending radius:
      • 10 x cable diameter (during operating)
      • 20 x cable diameter (during installation)
    • Temperature range:
      • Operating: -40 to +60°C
      • Storage/transport: -50 to +70°C
      • Installation: -20 to +50°C
  • Environment characteristics test:
    • Tensile strength: IEC 794-1-E1
    • Crush test: IEC 60794-1-E3
    • Impact test: IEC 60794-1-E4
    • Repeated bending: IEC 60794-1-E6
    • Torsion: IEC 60794-1-E7
    • Water penetration: IEC 60794-1-F5B
    • Temperature cycling: IEC 60794-1-F1
    • Compound flow: IEC 60794-1-E14
    • Sheath high voltage test: no sheath breakdown at 9T kV
  • Low loss and dispersion
  • Proper design and precise excess length control offer nice mechanical and environment-properties to cable
  • Corrugated steel tape armor brings better humidity proof performance and side pressure resistance
  • Compact construction, lightweight and self-supporting installation
  • All characteristics of cable fiber (fiber of finished cable) shall be, at least, in accordance with ITU-T G.657A/G.652D/G.652C standards
  • Applicable to long distance, inter-exchange communication, CATV and computer network transmission system
  • Fiber count: 2 to 288
  • Minimum bend radius:
    • Static: 10D
    • Dynamic: 20D
  • Cable bending radius:
    • 10 x cable diameter (during operating)
    • 20 x cable diameter (during installation)
  • Temperature range:
    • Operating: -40 to +60°C
    • Storage/transport: -50 to +70°C
    • Installation: -20 to +50°C
  • Static: 10D
  • Dynamic: 20D
  • 10 x cable diameter (during operating)
  • 20 x cable diameter (during installation)
  • Operating: -40 to +60°C
  • Storage/transport: -50 to +70°C
  • Installation: -20 to +50°C
  • Tensile strength: IEC 794-1-E1
  • Crush test: IEC 60794-1-E3
  • Impact test: IEC 60794-1-E4
  • Repeated bending: IEC 60794-1-E6
  • Torsion: IEC 60794-1-E7
  • Water penetration: IEC 60794-1-F5B
  • Temperature cycling: IEC 60794-1-F1
  • Compound flow: IEC 60794-1-E14
  • Sheath high voltage test: no sheath breakdown at 9T kV
