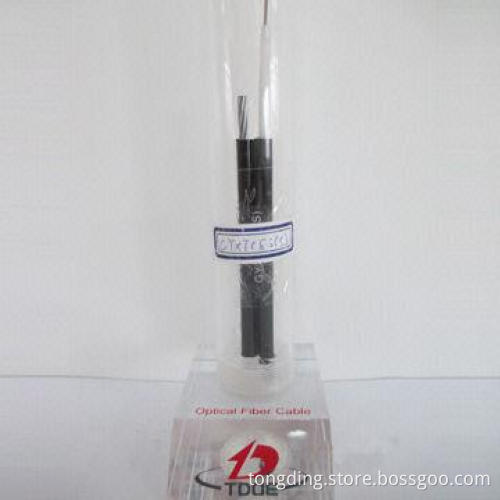

Self Supporting Aerial/Figure-8 Fiber-optic Cable with Steel Tape Armored
  • Self Supporting Aerial/Figure-8 Fiber-optic Cable with Steel Tape Armored
Self Supporting Aerial/Figure-8 Fiber-optic Cable with Steel Tape Armored

Self Supporting Aerial/Figure-8 Fiber-optic Cable with Steel Tape Armored

Get Latest Price
Payment Type:
T/T, L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C
Product Description
Product Description
  • Technical characteristics:
    • Fiber count: 2 to 288
    • Low loss/dispersion
    • Proper design and precise excess length control offer nice mechanical and environmental properties to cable
    • Corrugated steel tape armor brings better humidity-proof performance and side pressure-resistant
    • Compact construction, lightweight, self-supporting installation
  • Performance:
    • Applicable to long distance, inter-exchange communication, CATV and computer network transmission system
    • Minimum bend radius:
      • Static: 10D
      • Dynamic: 20D
    • Operation temperatures: -40 to 70°C
  • Fiber characteristic:
    • All characteristics of cable fiber (fiber of finished cable) shall be, at least, in accordance with ITU-T recommendation 657A/G.652D/G.652C
  • Characteristic of optical cable:
    • 4.1 Cable bending radius:
      • 10 x cable diameter (during operation)
      • 20 x cable diameter (during installation)
    • Temperature range:
      • Operating temperature range: -10 to 60°C
      • Storage/transport temperature range: -10 to 70°C
      • Installation temperature range: 0 to 50°C
    • Main mechanical and environment characteristics test:
      • Tensile strength: EC 794-1-E1
      • Crush test: IEC 60794-1-E3
      • Impact test: IEC 60794-1-E4
      • Repeated bending: IEC 60794-1-E6
      • Torsion: IEC 60794-1-E7
      • Water penetration: IEC 60794-1-F5B
      • Temperature cycling: IEC 60794-1-F1
      • Compound flow: IEC 60794-1-E14
      • Sheath high voltage test: no sheath breakdown at 9T kV
  • Fiber count: 2 to 288
  • Low loss/dispersion
  • Proper design and precise excess length control offer nice mechanical and environmental properties to cable
  • Corrugated steel tape armor brings better humidity-proof performance and side pressure-resistant
  • Compact construction, lightweight, self-supporting installation
  • Applicable to long distance, inter-exchange communication, CATV and computer network transmission system
  • Minimum bend radius:
    • Static: 10D
    • Dynamic: 20D
  • Operation temperatures: -40 to 70°C
  • Static: 10D
  • Dynamic: 20D
  • All characteristics of cable fiber (fiber of finished cable) shall be, at least, in accordance with ITU-T recommendation 657A/G.652D/G.652C
  • 4.1 Cable bending radius:
    • 10 x cable diameter (during operation)
    • 20 x cable diameter (during installation)
  • Temperature range:
    • Operating temperature range: -10 to 60°C
    • Storage/transport temperature range: -10 to 70°C
    • Installation temperature range: 0 to 50°C
  • Main mechanical and environment characteristics test:
    • Tensile strength: EC 794-1-E1
    • Crush test: IEC 60794-1-E3
    • Impact test: IEC 60794-1-E4
    • Repeated bending: IEC 60794-1-E6
    • Torsion: IEC 60794-1-E7
    • Water penetration: IEC 60794-1-F5B
    • Temperature cycling: IEC 60794-1-F1
    • Compound flow: IEC 60794-1-E14
    • Sheath high voltage test: no sheath breakdown at 9T kV
  • 10 x cable diameter (during operation)
  • 20 x cable diameter (during installation)
  • Operating temperature range: -10 to 60°C
  • Storage/transport temperature range: -10 to 70°C
  • Installation temperature range: 0 to 50°C
  • Tensile strength: EC 794-1-E1
  • Crush test: IEC 60794-1-E3
  • Impact test: IEC 60794-1-E4
  • Repeated bending: IEC 60794-1-E6
  • Torsion: IEC 60794-1-E7
  • Water penetration: IEC 60794-1-F5B
  • Temperature cycling: IEC 60794-1-F1
  • Compound flow: IEC 60794-1-E14
  • Sheath high voltage test: no sheath breakdown at 9T kV
