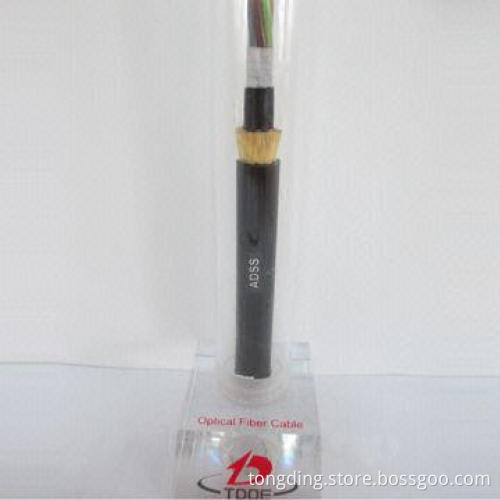

All-dielectric Self Supporting Fiber/Power Optical Cable, 2 to 144 Fiber Count

Get Latest Price

Payment Type:: TT, LC

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, LC

Product Description

Technical characteristics:

Fiber count: 2 to 144
Low loss/dispersion
Proper design and precise excess length control offer nice mechanical and environmental properties to cable
Non-metallic construction design gives cable strong-resistant capability against electromagnetic interference
High-strength armed yearn as strength member offers very high tensile strength, small diameter and lightweight to fit different climate conditions and laying spans
Special anti-tracking (AT) outer sheath (optional) makes cable have strong electro-erosion resistance capability

Performance:

Typically used in areas with high electrical field strength or frequent lightning in power communication transmission system
Technical parameters are subject to various fiber counts, climate conditions (e.g. temperature, wind speed, ice coat thickness), laying spans and voltage classes of power lines

Fiber characteristic:

All characteristics of cable fiber (fiber of finished cable) shall be, at least, in accordance with ITU-T recommendation G.657A/G.652D/G.652

Characteristic of optical cable:

4.1 cable bending radius:
- 10 x cable diameter (during operation)
- 20 x cable diameter (during installation)
Temperature range:
- Operating temperature range: -40 to +60°C
- Storage/transport temperature range: -50 to +70°C
- Installation temperature range: -20 to +50°C
Main mechanical and environmental characteristics test:
- Tensile strength: as per IEC 794-1-E1
- Crush test: as per IEC 60794-1-E3
- Impact test: as per IEC 60794-1-E4
- Repeated bending: as per IEC 60794-1-E6
- Torsion: as per IEC 60794-1-E7
- Temperature cycling: as per IEC 60794-1-F1
- Compound flow: as per IEC 60794-1-E14
- Sheath high voltage test: no sheath breakdown at 9T kV
