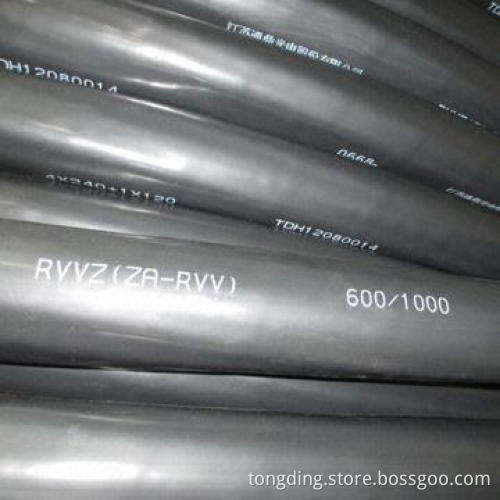

Fire-resistant Electrical / Power Cable with PVC Insulation and Sheath in low-voltage (0.6/1 KV)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, LC

Product Description

Nominal voltage: 0.6/1kV (Uo/U)

Maximum nominal temperature about conductor: 30°C

Short-circuit (<4s): <160°C

Installation temperature: ≥0°C

Cable bending radius:

Unarmored cable:
- ZR type: 6 x overall diameter
- NH type: 12 x overall diameter
- Armored cable: 20 x cable diameter
Cabling method: installed aerially, in duct, cable trough or underground

Installation conditions:

Unarmored cable:

Cabling method: installed aerially, in duct, cable trough or underground

ZR type: 6 x overall diameter

NH type: 12 x overall diameter

Armored cable: 20 x cable diameter

Installation in air:

Center distance between 2 parallel-installed single 2-core cables double diameter for 185mm and 2 below cable, 90mm for 240mm and above
Temperature:
- Ambient: 30°C
- Maximum conductor: 30°C
Installation by burial: center distance between 2 non-contact installed single core cables doubles cable diameter

Maximum conductor temperature: 30°C

Soil thermal resistance 1.0m/W

Burial depth: 0.3m

Standard: YD/T1173

Center distance between 2 parallel-installed single 2-core cables double diameter for 185mm and 2 below cable, 90mm for 240mm and above

Temperature:
