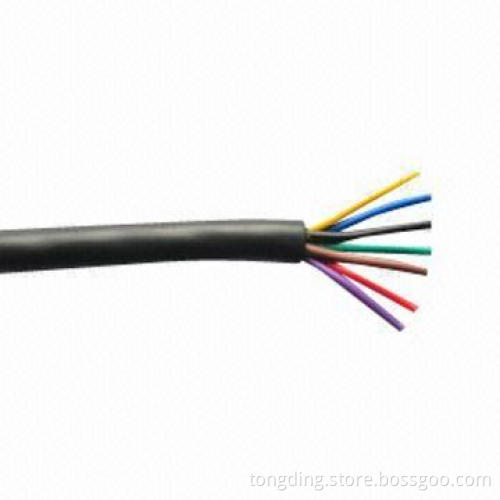

Electrical/Power Cable with XLPE Insulation and PVC Sheath in Low-voltage (0.6/1 KV)
  • Electrical/Power Cable with XLPE Insulation and PVC Sheath in Low-voltage (0.6/1 KV)
Electrical/Power Cable with XLPE Insulation and PVC Sheath in Low-voltage (0.6/1 KV)

Electrical/Power Cable with XLPE Insulation and PVC Sheath in Low-voltage (0.6/1 KV)

Get Latest Price
Payment Type:
T/T, L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C
Product Description
Product Description
  • Maximum conductor temperature: 70°C
  • Short-circuit temperature: <160°C (lasting for <5 seconds)
  • Ambient temperature for installation shall be not lower than 0°C (minimum)
  • Bending radius:
    • Single-core: 20mm
    • Multi-core: 15mm
    • Cable can be laid aerially in trough or underground
  • Model type specifications:
    • Cu conductor, low-smoke zero-halogen polyolefin insulated category, flame-retardant and flexible cable
    • Cu conductor, low-smoke zero-halogen polyolefin insulated/sheathed category, flame retardant and flexible cable
    • Cu conductor, low-smoke zero-halogen polyolefin insulated and sheathed steel-tape armored category, flame retardant and flexible cable
    • Cu conductor, low-smoke zero-halogen polyolefin insulated category, fire-resistant and flexible cable
    • Cu conductor, low-smoke zero-halogen polyolefin insulated and sheathed category, fire-resistant and flexible cable
    • Cu conductor, low-smoke zero-halogen polyolefin insulated and sheathed steel-tape armored category, fire-resistant and flexible cable
  • Applications:
    • Mainly designed for electrical power transmission and distribution
    • Lines with rated low voltage U0/U of 0.6 or 1kV AC
  • Standards:
    • Low-smoke zero-halogen characters complying: GB/T 17650-1998 and GB/T 17651-1998
    • Flame-retardant cable: GB/T 18380.3-2001 (IEC 60332-3-22: 2000) for category A
    • Fire-resistant properties of cable: GB/T 12666
    • Type: YD/T 1173-2001
  • Single-core: 20mm
  • Multi-core: 15mm
  • Cable can be laid aerially in trough or underground
  • Cu conductor, low-smoke zero-halogen polyolefin insulated category, flame-retardant and flexible cable
  • Cu conductor, low-smoke zero-halogen polyolefin insulated/sheathed category, flame retardant and flexible cable
  • Cu conductor, low-smoke zero-halogen polyolefin insulated and sheathed steel-tape armored category, flame retardant and flexible cable
  • Cu conductor, low-smoke zero-halogen polyolefin insulated category, fire-resistant and flexible cable
  • Cu conductor, low-smoke zero-halogen polyolefin insulated and sheathed category, fire-resistant and flexible cable
  • Cu conductor, low-smoke zero-halogen polyolefin insulated and sheathed steel-tape armored category, fire-resistant and flexible cable
  • Mainly designed for electrical power transmission and distribution
  • Lines with rated low voltage U0/U of 0.6 or 1kV AC
  • Low-smoke zero-halogen characters complying: GB/T 17650-1998 and GB/T 17651-1998
  • Flame-retardant cable: GB/T 18380.3-2001 (IEC 60332-3-22: 2000) for category A
  • Fire-resistant properties of cable: GB/T 12666
  • Type: YD/T 1173-2001
