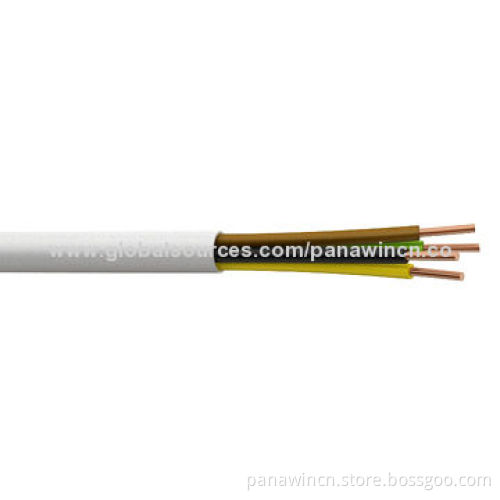

UL Telephone Installation Cable with Insulation of Polyvinyl Chloride (PVC), PVC Sheath

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Applications:

Used as telephone cables in telephone stations and sub-extensions
Suitable for installation in dry and damp environments in, on and under plaster as well as in the open air for fixed installation on outer walls of buildings
Telephone installation cables are not allowed for purposes of high current and power installation

Construction:

Conductor: solid bare copper conductor, diameter 0.6 and 0.8mm
Insulation: polyvinyl chloride (PVC)
Stranding: twisted to pairs and the pairs are stranded in layers
Core wrapping: plastic tape
Electrostatic screen (St): plastic coated aluminium foil and drain wire

Technical data:

Nominal voltage: U = 300V
Test voltage: 800V
Maximum operating temperature and fixed: -30 to +70°C
Temperature, moved/during installation: -5 to +50°C

Used as telephone cables in telephone stations and sub-extensions

Suitable for installation in dry and damp environments in, on and under plaster as well as in the open air for fixed installation on outer walls of buildings

Telephone installation cables are not allowed for purposes of high current and power installation

Conductor: solid bare copper conductor, diameter 0.6 and 0.8mm

Insulation: polyvinyl chloride (PVC)

Stranding: twisted to pairs and the pairs are stranded in layers

Core wrapping: plastic tape

Electrostatic screen (St): plastic coated aluminium foil and drain wire

Nominal voltage: U = 300V

Test voltage: 800V

Maximum operating temperature and fixed: -30 to +70°C

Temperature, moved/during installation: -5 to +50°C
