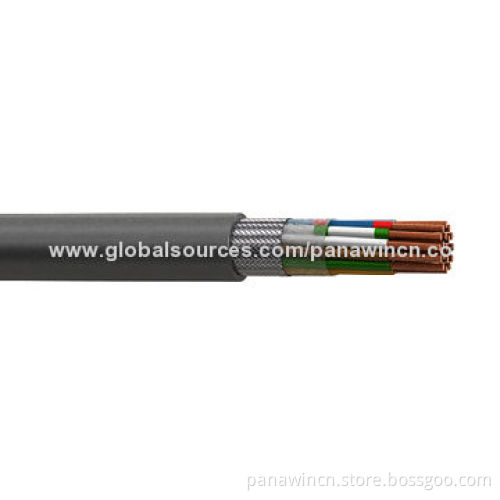

UL Telephone Installation Cable With Insulation of Polyethylene(PE),Sheath PE

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Applications:

Suitable for connecting telephone extension to telephone exchange or central offices and as well as for industrial plants

Construction:

Conductor: solid bare copper conductor, diameter 0.6 and 0.8mm
Insulation: polyethylene (PE)
Stranding: 4 cores twisted into star-quads, 5 star-quads stranded into 10 sub-units layed up in layers

Technical data:

Maximum operating temperature fixed: -30 to +70°C

Standards/material properties:

Suitable for connecting telephone extension to telephone exchange or central offices and as well as for industrial plants

Conductor: solid bare copper conductor, diameter 0.6 and 0.8mm

Insulation: polyethylene (PE)

Stranding: 4 cores twisted into star-quads, 5 star-quads stranded into 10 sub-units layed up in layers

Nominal voltage: 225V

Test voltage: 500V

Flame retardant: IEC 60332-1

Standard: VDE0815
