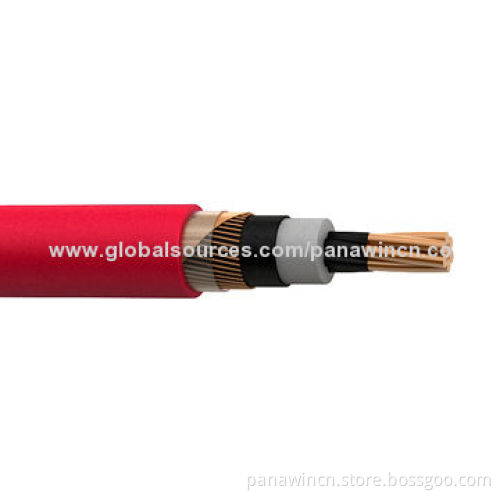

Single-core cables with XLPE insulation and PVC outer sheath middle voltage

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Application:

With insulation of cross-linked polyethylene (XLPE) are designed for transfer and distribution of electrical power with nominal voltage Uo/U6/10;12/20;18/30kV and frequency 50Hz in urban and district
Electrical networks and for electrical supply of transformer's sub stations, small and medium industrial plants

Construction

Conductor: Cu and Al stranded compacted
Insulation: XLPE compound
Metallic shield: Cu tapes
Insulation shield: semiconducting XLPE compound
Sheath colour: red

Technical data:

Nominal voltage: U0/U = 6/ 10 and 12/20kV
Temperature range: –30 to +90°C
Maximum short circuit temperature: 250°C
Short circuit time: 5s

With insulation of cross-linked polyethylene (XLPE) are designed for transfer and distribution of electrical power with nominal voltage Uo/U6/10;12/20;18/30kV and frequency 50Hz in urban and district

Electrical networks and for electrical supply of transformer's sub stations, small and medium industrial plants

Conductor: Cu and Al stranded compacted

Insulation: XLPE compound

Metallic shield: Cu tapes

Insulation shield: semiconducting XLPE compound

Sheath colour: red

Nominal voltage: U0/U = 6/ 10 and 12/20kV

Temperature range: –30 to +90°C

Maximum short circuit temperature: 250°C

Short circuit time: 5s
