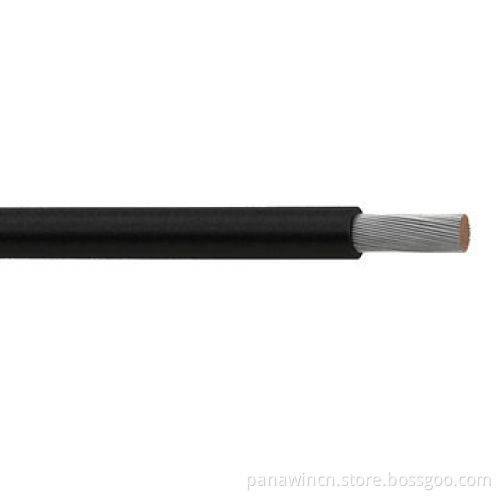

UL Photovoltaic Power Cables, Solar 125 Halogen-free, Flame-retardant
  • UL Photovoltaic Power Cables, Solar 125 Halogen-free, Flame-retardant
UL Photovoltaic Power Cables, Solar 125 Halogen-free, Flame-retardant

UL Photovoltaic Power Cables, Solar 125 Halogen-free, Flame-retardant

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Application: solar 125 with double insulated, electron-beam cross-linked cables for photovoltaic power applications
  • Construction:
    • Conductor: tinned fine copper strands, according to VDE 0295/ IEC 60228, class 5
    • Insulation: polyolefin copolymer electron-beam cross-linked
    • Outer sheath: polyolefin copolymer electron-beam cross-linked
    • Sheath colour: black
  • Technical data:
    • Nominal voltage: U0/U = 600/1000V AC, 1000/1800V DC
    • Test voltage: 4000V, 50Hz, 5min
    • Temperature range: –40 to +125°C
  • Conductor: tinned fine copper strands, according to VDE 0295/ IEC 60228, class 5
  • Insulation: polyolefin copolymer electron-beam cross-linked
  • Outer sheath: polyolefin copolymer electron-beam cross-linked
  • Sheath colour: black
  • Nominal voltage: U0/U = 600/1000V AC, 1000/1800V DC
  • Test voltage: 4000V, 50Hz, 5min
  • Temperature range: –40 to +125°C
