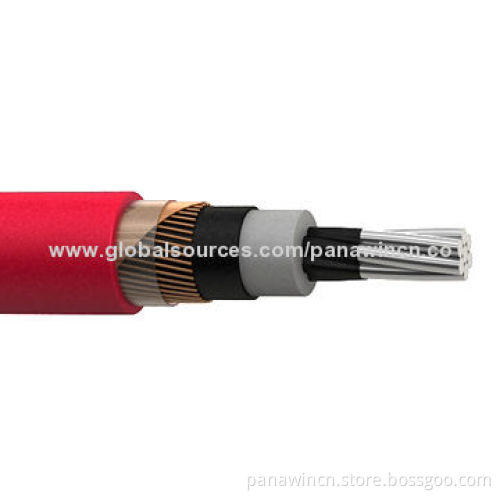

Single-core Power Cables, XLPE-insulated/Alu-conductor/Longitudinally Water-tight/Screened/PE-jacket

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Applications: suitable for indoor installation and in cable ducts, outdoors, underground and in water as well as for installations in wind turbine, switch-boards and power station

Construction

Conductor: circular bare aluminum-conductor of stranded, according to VDE 0295/ IEC60228, class2
Insulation: cross-linked polyethilene (XLPE)
Outer sheath: polyethilene (PE)
Sheath colour: black

Technical data:

Nominal voltage: U0/U = 6/1012/2018/30kV
Test voltage: 6/10kV = maximum 15kV, 12/20kV = maximum 30kV, 18/30kV = maximum 45kV
Temperature range: –20 to +90°C

Conductor: circular bare aluminum-conductor of stranded, according to VDE 0295/ IEC60228, class2

Insulation: cross-linked polyethilene (XLPE)

Outer sheath: polyethilene (PE)

Sheath colour: black

Nominal voltage: U0/U = 6/1012/2018/30kV

Test voltage: 6/10kV = maximum 15kV, 12/20kV = maximum 30kV, 18/30kV = maximum 45kV

Temperature range: –20 to +90°C
