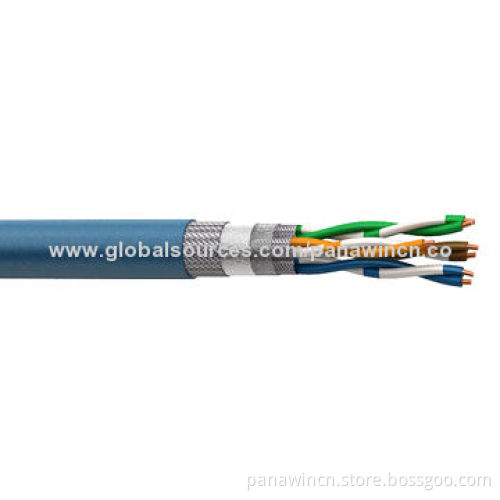

PVC insulated double-screened PVC sheathed data and computer cable

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Application:

Used as a signal and control cable in combination with computers and external units
The shielding properties also make this cable type well suited for use as a connecting cable in sound studio equipment, measuring and control sectors as well as proving a highly reliable cable for process-control and security systems

Construction:

Conductor: bare copper, fine wire conductors, to DIN VDE0812
Insulation: PVC insulation YI2, to DIN VDE 0207 part4
Cores twisted in pairs
Screen: pairs screened individually, tinned copper, coverage approx. 85%
Special PVC coating over individual shielded pairs
Wrapping: polyester tape wrapping

Technical data:

Nominal voltage: U0/U=350/500V
Test voltage: 1200V-2000V
Temperature range:
- Flexing: -5°C to +80°C
- Fixed installation: -40°C to +80°C

Used as a signal and control cable in combination with computers and external units

The shielding properties also make this cable type well suited for use as a connecting cable in sound studio equipment, measuring and control sectors as well as proving a highly reliable cable for process-control and security systems

Conductor: bare copper, fine wire conductors, to DIN VDE0812

Insulation: PVC insulation YI2, to DIN VDE 0207 part4

Cores twisted in pairs

Screen: pairs screened individually, tinned copper, coverage approx. 85%

Special PVC coating over individual shielded pairs

Wrapping: polyester tape wrapping

Nominal voltage: U0/U=350/500V

Test voltage: 1200V-2000V

Temperature range:
