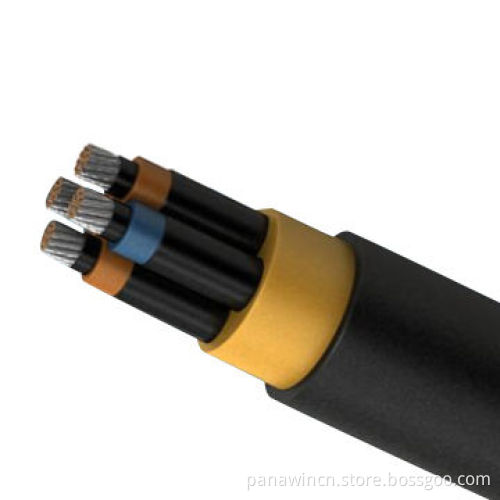

Torsion Resistant Cable with Insulation and Outer Sheath, in Halogen-free Rubber
  • Torsion Resistant Cable with Insulation and Outer Sheath, in Halogen-free Rubber
Torsion Resistant Cable with Insulation and Outer Sheath, in Halogen-free Rubber

Torsion Resistant Cable with Insulation and Outer Sheath, in Halogen-free Rubber

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Applications:
    • Used in wind turbines with high mechanical effort in a temperature range from -40 to +90°C
    • Cables can be installed free moveable, free hanging or fixed
    • For free hanging operation the cables are twistable
    • Used for economical transmission of large energy rates with medium voltage
  • Construction:
    • Conductor: tinned fine electrolytic copper and strands
    • According to VDE 0295/IEC 60228, class 5
    • Insulation: halogen-free, heat resistant insulation based on EPR
    • Electrical field control: inner and outer layer of semi-conductive, halogen-free rubber
    • Outer sheath: halogen-free, special rubber compound
    • Resistant against heat, cold, UV, ozone and mineral oil
    • Sheath colour: black
  • Technical data:
    • Nominal voltage: U0/U=8.7/15 to 20/35kV
    • Test voltage: 17 to 50kV AC over 5 minutes
    • According to DIN/VDE 0250, part 813
    • Temperature range: -40 to +90°C
  • Used in wind turbines with high mechanical effort in a temperature range from -40 to +90°C
  • Cables can be installed free moveable, free hanging or fixed
  • For free hanging operation the cables are twistable
  • Used for economical transmission of large energy rates with medium voltage
  • Conductor: tinned fine electrolytic copper and strands
  • According to VDE 0295/IEC 60228, class 5
  • Insulation: halogen-free, heat resistant insulation based on EPR
  • Electrical field control: inner and outer layer of semi-conductive, halogen-free rubber
  • Outer sheath: halogen-free, special rubber compound
  • Resistant against heat, cold, UV, ozone and mineral oil
  • Sheath colour: black
  • Nominal voltage: U0/U=8.7/15 to 20/35kV
  • Test voltage: 17 to 50kV AC over 5 minutes
  • According to DIN/VDE 0250, part 813
  • Temperature range: -40 to +90°C
