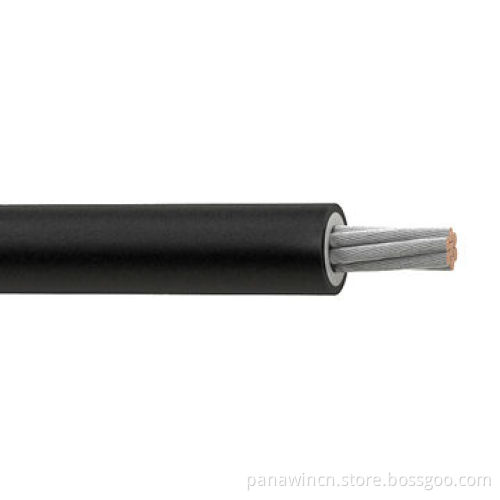

EPR insulated chloroprene rubber sheathed cable for underground mines

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Applications: NSGAFOEU/NSHXAFOE for fixed installation in trucks and buses, in conduits and closed installation systems and also for connection of mobile parts

Constructions:

Conductor: stranded tinned copper conductor, class 5 according to DIN VDE 0295/ IEC 60228
Inner conduct or layer (for 6kV): semi-conducting layer
Insulation: EPR (ethylene propylene rubber)
Optional screen (for NSGAFCMOEU/NSHXAFCMOE): tinned copper wires

Technical data:

Nominal voltage: 1.8/3kV (NSGAFOEU,NSHXAFOE), 3.6/6kV (NSGAFOEU, NSHXAFOE, NSGAFCMOEU and NSHXAFCMOE)
Temperature range:
- Fixed: –40 to +80°C
- Flexible: –25 to +80°C

Conductor: stranded tinned copper conductor, class 5 according to DIN VDE 0295/ IEC 60228

Inner conduct or layer (for 6kV): semi-conducting layer

Insulation: EPR (ethylene propylene rubber)

Optional screen (for NSGAFCMOEU/NSHXAFCMOE): tinned copper wires

Nominal voltage: 1.8/3kV (NSGAFOEU,NSHXAFOE), 3.6/6kV (NSGAFOEU, NSHXAFOE, NSGAFCMOEU and NSHXAFCMOE)

Temperature range:
