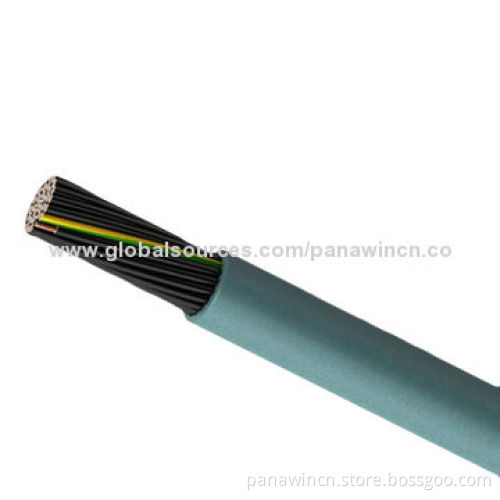

UL/PVC insulated and sheathed flexible cable for industrial electronics

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Applications:

Used in instrumentation and control engineering where low current consumptions are required in industrial electronics, information and transmission systems, office machines and precision mechanics these cables are ideal for voice communication in telecommunications systems

Specifications:

Conductor: class 5 annealed copper conductors according to IEC60228
Insulation: PVC insulation with color coding according to DIN47100
Cores twisted in layers
Outer sheath: PVC
Sheath color: grey
Nominal voltage: U0/U=350/500V
Test voltage: 1200V
Temperature range: -30 to +70°C

Used in instrumentation and control engineering where low current consumptions are required in industrial electronics, information and transmission systems, office machines and precision mechanics these cables are ideal for voice communication in telecommunications systems

Conductor: class 5 annealed copper conductors according to IEC60228

Insulation: PVC insulation with color coding according to DIN47100

Cores twisted in layers

Outer sheath: PVC

Sheath color: grey

Nominal voltage: U0/U=350/500V

Test voltage: 1200V

Temperature range: -30 to +70°C
