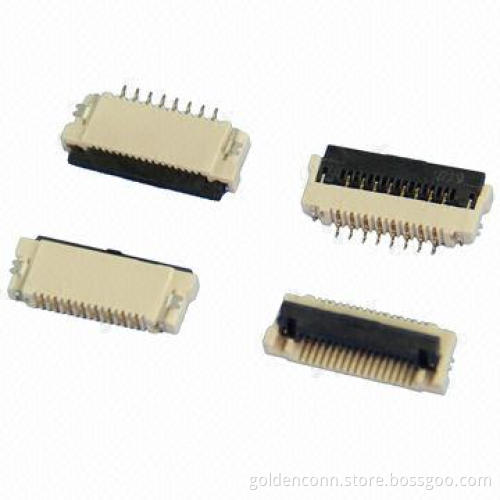

1.0 Pitch FPC Connector with Front Lock Type, H2.0
  • 1.0 Pitch FPC Connector with Front Lock Type, H2.0
1.0 Pitch FPC Connector with Front Lock Type, H2.0

1.0 Pitch FPC Connector with Front Lock Type, H2.0

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Key specification:
    • Positions: 4 to 30
    • Plastic height: 2.0mm
    • Current rating: 1.0A
    • Contact resistance: 20mΩ maximum
    • Insulation resistance: 50mΩ minimum
    • Withstanding voltage: 500V AC
    • Operating temperature: -25 to +85°C
  • Materials:
    • Contact material: copper alloy
    • Fitting nail: copper alloy
    • Insulator material: high temprature plastic 94V-0
    • Standards: glass-reinforced thermoplastic
  • Positions: 4 to 30
  • Plastic height: 2.0mm
  • Current rating: 1.0A
  • Contact resistance: 20mΩ maximum
  • Insulation resistance: 50mΩ minimum
  • Withstanding voltage: 500V AC
  • Operating temperature: -25 to +85°C
  • Contact material: copper alloy
  • Fitting nail: copper alloy
  • Insulator material: high temprature plastic 94V-0
  • Standards: glass-reinforced thermoplastic
