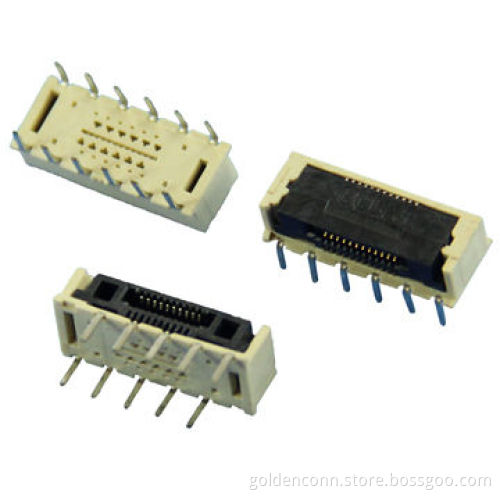

0.5 to 2.5 Pitch FPC Connector, DIP Type, H3.8
  • 0.5 to 2.5 Pitch FPC Connector, DIP Type, H3.8
0.5 to 2.5 Pitch FPC Connector, DIP Type, H3.8

0.5 to 2.5 Pitch FPC Connector, DIP Type, H3.8

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Key specification:
    • Positions: 10/12
    • Plastic height: 3.8mm
    • Current rating: 0.4A
    • Contact resistance: 30mΩ maximum
    • Insulation resistance: 100mΩ minimum
    • Withstanding voltage: 500V AC
    • Operating temperature: -25 to +85°C
  • Materials:
    • Contact material: copper alloy
    • Fitting nail: copper alloy
    • Insulator material: high temperature plastic 94V-0
    • Standards: glass-reinforced thermoplastic
  • Positions: 10/12
  • Plastic height: 3.8mm
  • Current rating: 0.4A
  • Contact resistance: 30mΩ maximum
  • Insulation resistance: 100mΩ minimum
  • Withstanding voltage: 500V AC
  • Operating temperature: -25 to +85°C
  • Contact material: copper alloy
  • Fitting nail: copper alloy
  • Insulator material: high temperature plastic 94V-0
  • Standards: glass-reinforced thermoplastic
