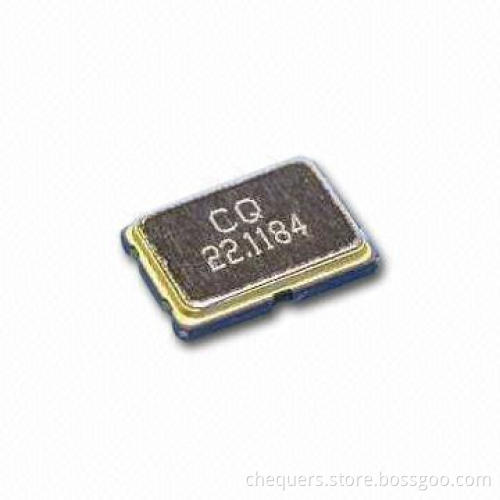

Quartz Crystal Unit in 7050 (7.0 x 5.0mm) Package

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Package 1: SMD 7050 (2 pads, 7.0 x 5.0mm)

Package 2: SMD 7050 (4 pads, 7.0 x 5.0mm)

Frequency range: 5.500MHz to 150.000MHz

Frequency tolerance (at 25 deg C): +/-10ppm to +/-100ppm

Frequency drift: +/-10ppm to +/-100ppm

Operating temperature range: -10-60°C to -40-85°C

Storage temperature range: -40-85°C to -55-125°C

Aging (at 25°C): +/-5ppm/year max.

Shunt capacitance: 7pF max.

Drive level: 100uW (typical)

Insulation resistance: 500MΩ min (at DC 100V)

Load capacitance: Suggested by customer

Minimum order quantity: 1,000pcs
