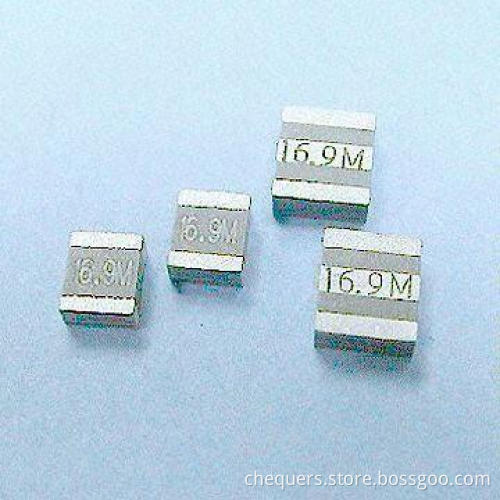

SMD Ceramic Resonator with Built-in Capacitors

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, C.O.D. or Bank Draft

Product Description

ZTTCC Series (SMD ceramic resonator with built-incapacitors)

- Resonant frequency: 2.00MHz to 8.00MHz (MG type)

- Resonant impedance: 2.00MHz to 2.99MHz - 100ohms max.

- 3.00MHz to 3.49MHz - 50ohms max.

- 3.50MHz to 7.99MHz - 30ohms max.

- Dimension: 7.4 x 3.4 x 1.8mm

ZTTCS Series (SMD ceramic resonator with built-incapacitors)

- Resonant frequency: 8.01MHz to 13.00MHz (MT type)

- 13.01MHz to 50.00MHz (MX type)

- Resonant impedance: 8.01MHz to 13.00MHz - 25ohms max.

- 13.01MHz to 50.00MHz - 40ohms max.

- Dimension: 4.7 x 4.1 x 1.6mm

ZTTCV Series (SMD ceramic resonator with built-incapacitors)

- Resonant frequency: 20.00MHz to 50.00MHz (MX type)

- Resonant impedance: 40ohm max.

- Dimension: 3.7 x 3.1 x 1.2mm

For ZTTCC/ZTTCS/ZTTCV Series:

- Frequency tolerance (25?C): ?0.5%

- Operating temperature: -20?C to +80?C

- Aging (10 years): ?0.3%
