Parallel bus bar with maximum length of 200m

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C or T/T

Product Description

Crane power feeding line or conductor bar is a special conductor system that provides electricity to mobile and rotary equipment

Typically comprised of electrical conductor and collector, this conductor system finds wide applications in crane industry

Two most commonly used forms of conductor system are: enclosed and parallel

Enclosed busbar:

Advantages:
- Installation and maintenance is simple and straightforward
- Safe, reliable even in harshest climates such as heavy rain, snow or frost
- Great electrical conductivity while dissipating heat quickly
- Low impedance and minimum line loss
- Graphite brush with high electrical conductivity and wear resistance
- Long use life
Technical features:
- Insulation cover: IP13, IP55 or IP23
- Insulation cover provides high degree of protection that prevents electrical shock from finger touch
- Flame retardant
- Maximum operating altitude: 2000m
- Maximum working temperature: 85°C

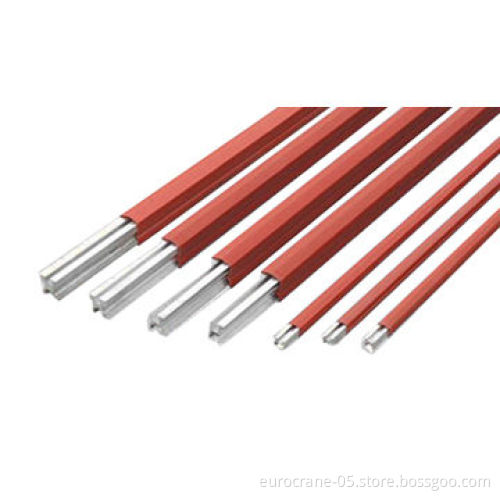

Parallel busbar:

Advantages:
- Simplified installation
- Limited maintenance
- Withstand high current flow
- Power source can be connected to the conductor from almost any points
- Compact and simplified design
- Suitable for long-distance power supply in any indoor applications
Technical features:
- With one trolley conductor system, electricity can be fed to multiple mobile machines at the same time
- Sturdy, durable, corrosion-resistance stainless steel contact face
- Insulation cover keeps water or dust from building up
- For high temperature applications, our trolley conductor system can be supplied with an ordinary heat-resistant coating.
- Without use of expansive parts, conductor system can have a maximum length of 200m
- Accommodate a maximum sliding speed of 200m/min

Applications:

Power plant, warehouse, port and dock, metallurgy, petrochemical, petroleum, textile, photograph industry and amusement equipment
